IP69K bus night vision rearview reverse camera for truck cctv fleet security monitor surveillance system

An Internet Protocol (IP) Camera is a high-definition digital camera with its own IP address. Instead of transmitting video over a video cable to a monitor or MDVR, the IP camera transmits digital video to the MDR over a data connection (Ethernet cable) where the images are saved to the HDD memory.
Vehicle collisions and incidents can be time-consuming and costly to resolve, so having recorded footage where there are conflicting reports of events or by being able to prove a staged accident is invaluable to any company.


Product Detail

Product Tags

IP69K bus night vision rearview reverse camera for truck cctv fleet security monitor s (1)

Application

Product Details

Vehicle IP cameras are designed specifically for use in the mobiles applications. By using a POE camera it simplifies the wiring and makes a plug and play type solution when used with the right mobile PC

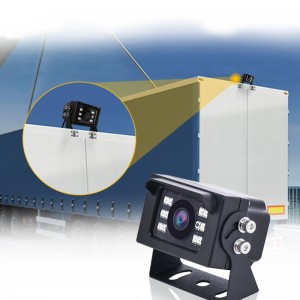

Camera MRV1D can be mounted on the rear of the vehicle and various lens options are available to vary the field of view. Should you need assistance to find the right solution that best suits your requirements or need something unique, get in touch with our team.

Product Display

Product Parameter

Model

MRV1D-IPE20NM-25-M

Resolution

1920*1080, 25/30FPS

Image Sensor

GC2053

TV System

PAL/NTSC(Optional)

Picture Elements

1920 (H)  x 1080 (V)

Illumination

0 Lux (IR LED On)

Dual Streaming

Main streaming:1920*1080 / 1280*960/1280*720/704*576

Sub-streaming:704*576/640*480

Video Format

H.264,H.265

Video Bit Rate

128Kbps~8Mbps

Audio Processing

G.711

Ethernet

TCP/IP,HTTP,FTP,DHCP,DNS,DDNS,RTP,RTSP,

RTCP,PPPOE,NTP,SMTP

Power

DC-12V

Power Consumption

Max 5(IR LED On)

Mirror

Available

ICR

N/A

Infrared Spectrum

940nm

Infrared LED

11 LEDS

Lens

f2.5mm  Megapixel

Pan Adjusting

± 13.5 Degree

Tilt Adjusting

± 42 Degree

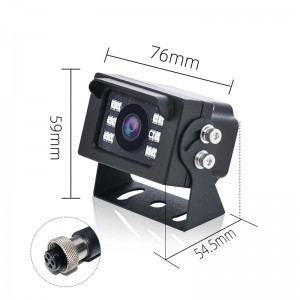

Dimensions (L x W x H)

76 x 59 x 54.5 mm

Net Weight

210g

Weatherproof/Water Proof

IP69K

Running Environment

Temperature-20 ~ + 50 ° C, humidity 20 to 80%

Storage Environment

Temperature-20 ~ + 65 ° C, humidity 20 to 90%
