3D 4 Channel Motorhome Arround View Parking Camera

Model: M360-13AM-T5

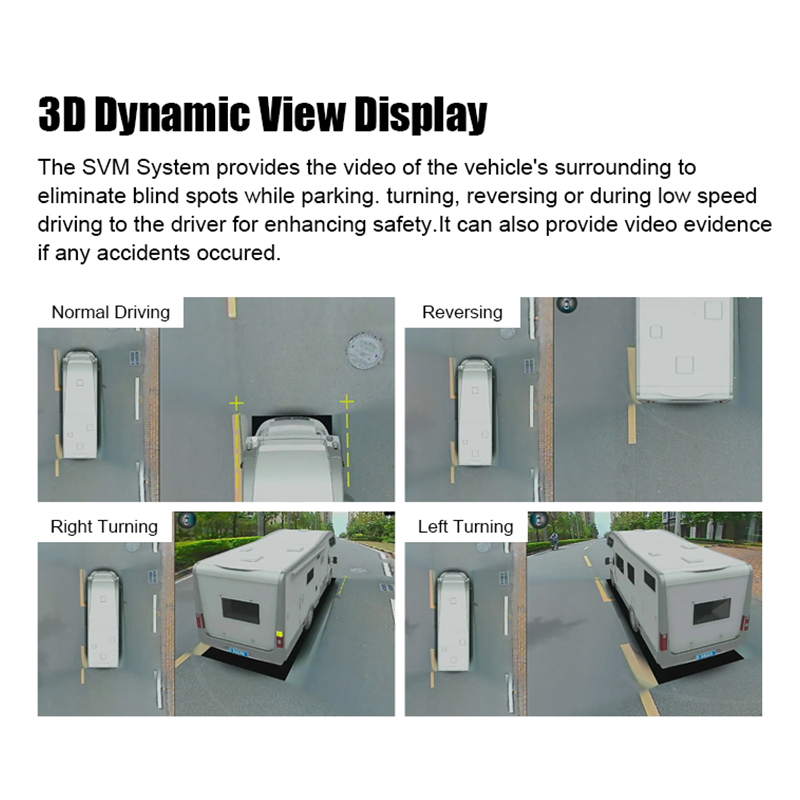

The SVM System provides the video of the vehicle’s surrounding to eliminate blind spots while parking, turning, reversing or during low speed driving to the driver for enhancing safety. It can also provide video evidence if any accidents occured.


>> MCY welcomes all OEM/ODM projects. Any inquiry, please send an email to us.

  • Display Mode: 2D/3D
  • Resolution: 720P/1080P
  • TV system: PAL/NTSC
  • Operating voltage: 9-36V
  • Operating temperature: -30°C-70°C
  • Waterproof Rate: IP67
  • Product Detail

    Product Tags

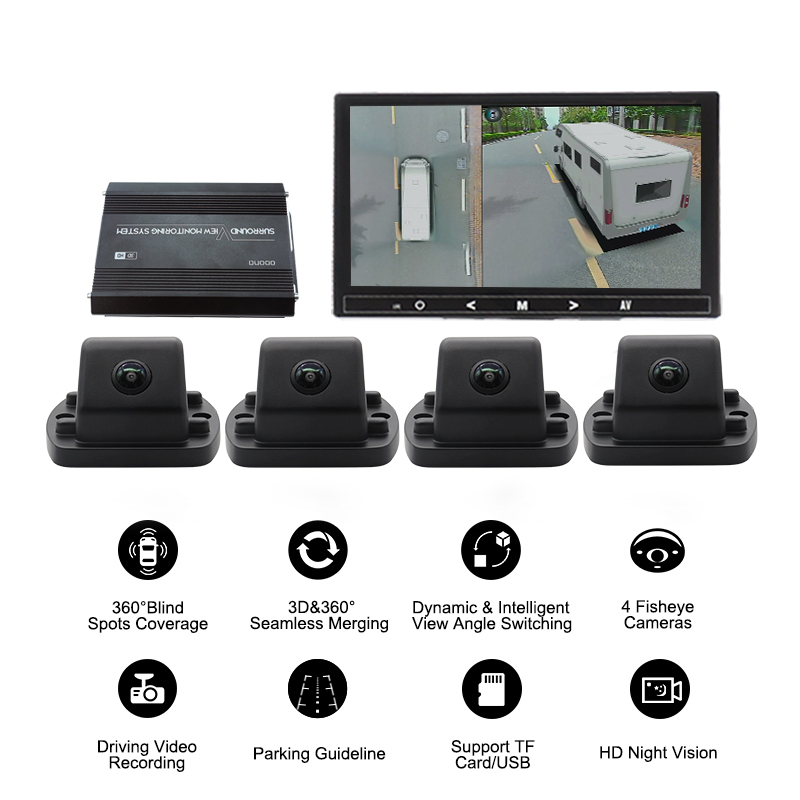

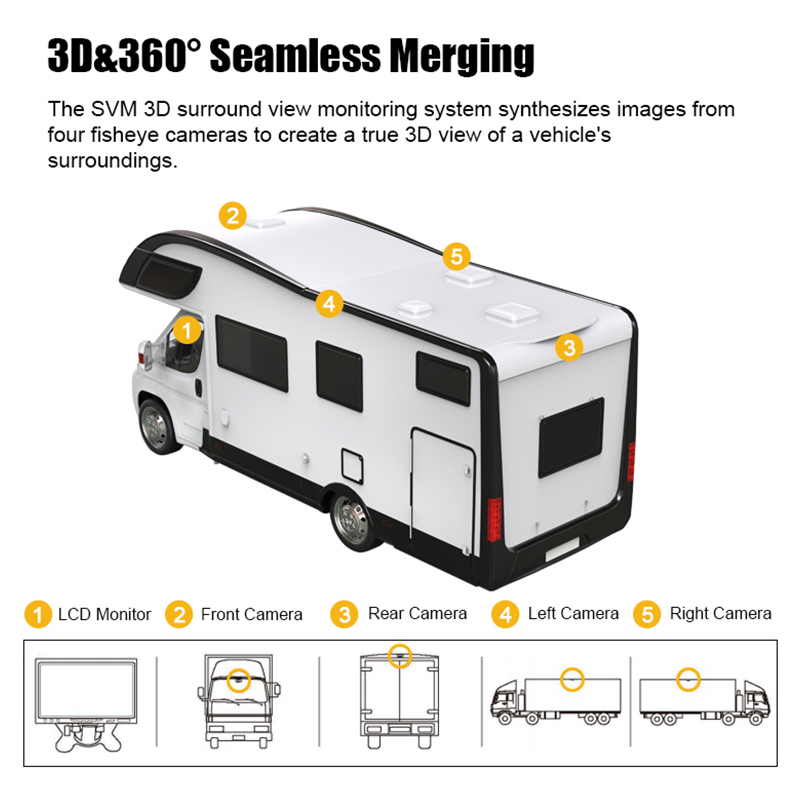

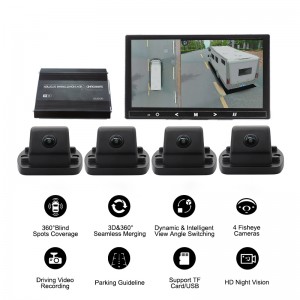

    The 3D SVM Camera System synthesizes images from four cameras to create a true 3D sophisticated view of a vehicle's surroundings. The technology enables flexible omni-directional monitoring around a vehicle from a dynamically definable perspective or "free eye point." Such kind of technology can display the complete vision of the positioning and moving path of the vehicle, it covers blind spot and thus works perfectly as a safe parking and driving guide even when restricted by adjacent vehicles and objects, parking line, etc.

    ● Four 180 degrees ultra wide fish-eye cameras
    ● Seamless video merging
    ● Dynamic 3D mode view angle switching for better surrounding environment observation
    ● Independent Fish-eye calibration parameter and algorithm for each camera.
    ● Support alternative recording media for TF card or USB disk
    ● The simplest calibration steps with calibration tape and packing box,and system applicable for almost all types of vehicle which including bus, coach, truck, van, motorhome, construction vehicle and etc. Typical length of the vehicle is 5.5m, 6.5m, 10m & 13m.
    ● Smart power managements to save automobile’s battery
