AI BSD Pedestrian & Vehicle Detecting Camera

Model: TF78, MSV23

The AI intelligent detection camera can detect pedestrians, cyclists and vehicles in the blind spot around the vehicle and provide real-time visual and audio alerts to remind drivers of potential risks.

>> MCY welcomes all OEM/ODM projects. Any inquiry, please send an email to us.

  • Effective Pixel: 1280(H)*720(V)
  • IR Night Vision: Available
  • Lens: f1.58mm
  • Power Supply: IP69K
  • Operating Temp.: -30°C to +70°C
  • Product Detail

    Product Tags

    AI 01


    • 7inch HD side / rear / overlook camera monitor system for real time detecting
    pedestrians, cyclists, and vehicles
    • Visual and Audible alarm output to remind drivers of potential risks
    • Monitor built in speaker, support audible alarm output
    • External buzzer with audible alarm to alert pedestrians, cyclists or vehicles (optional)
    • Warning distance can be adjustable: 0.5~10m
    • Compatible with HD monitor and MDVR
    • Application: bus, coach, delivery vehicles, construction trucks, forklift and etc.

    Dangers of Large Vehicle Blind Spots

    Large vehicles such as trucks, freight trucks, and buses have significant blind spots. When these vehicles are driving at high speeds and encounter motorcyclists changing lanes or pedestrians suddenly appearing during turns, accidents can occur easily.

    AI 02

    Pedestrian & Vehicle Detection

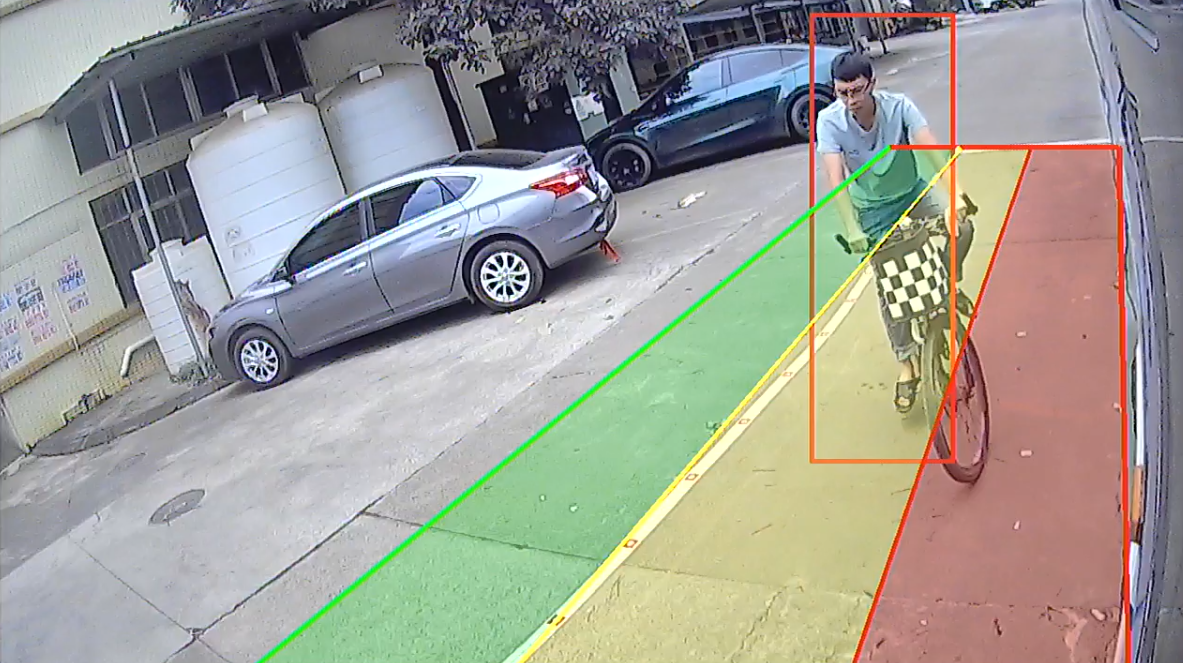

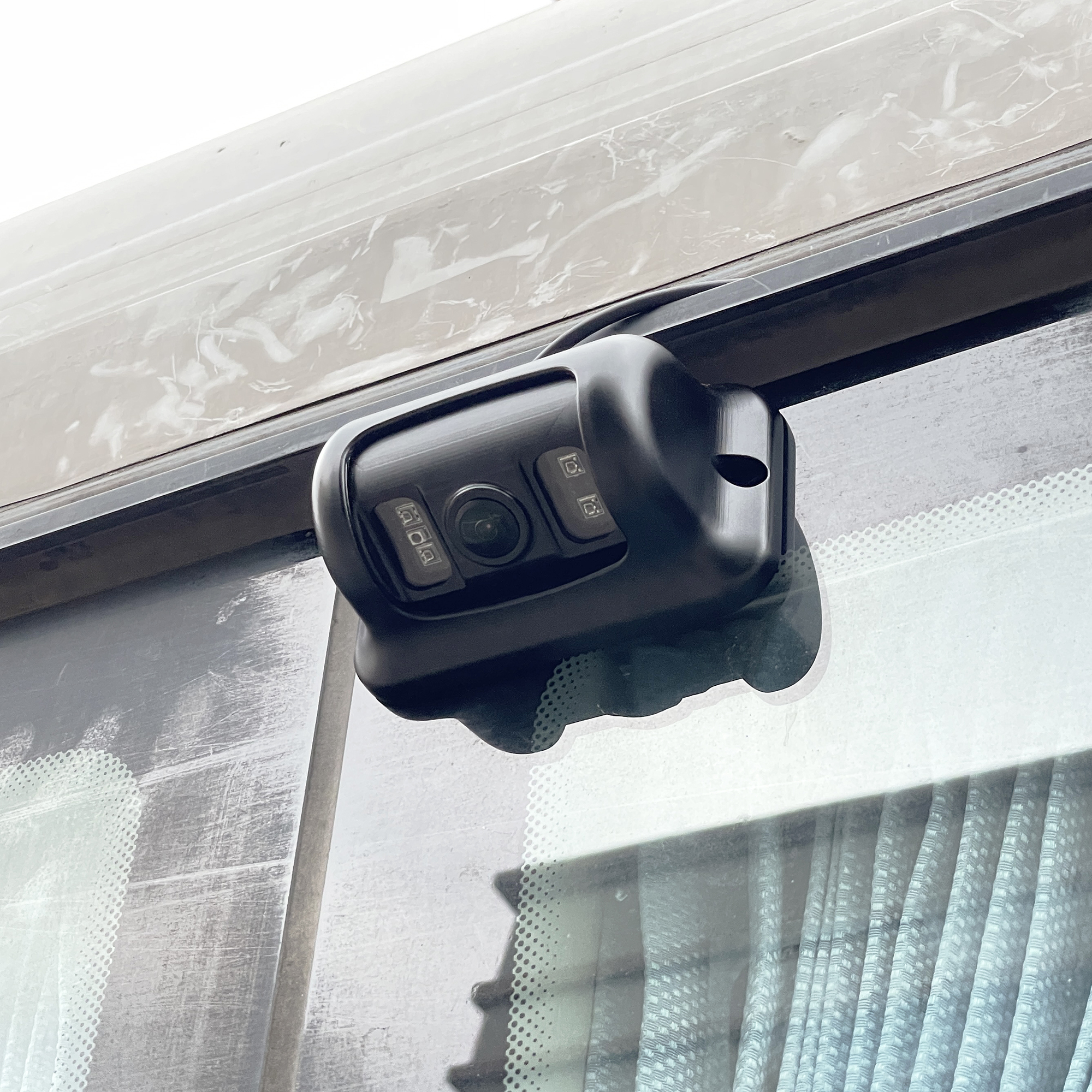

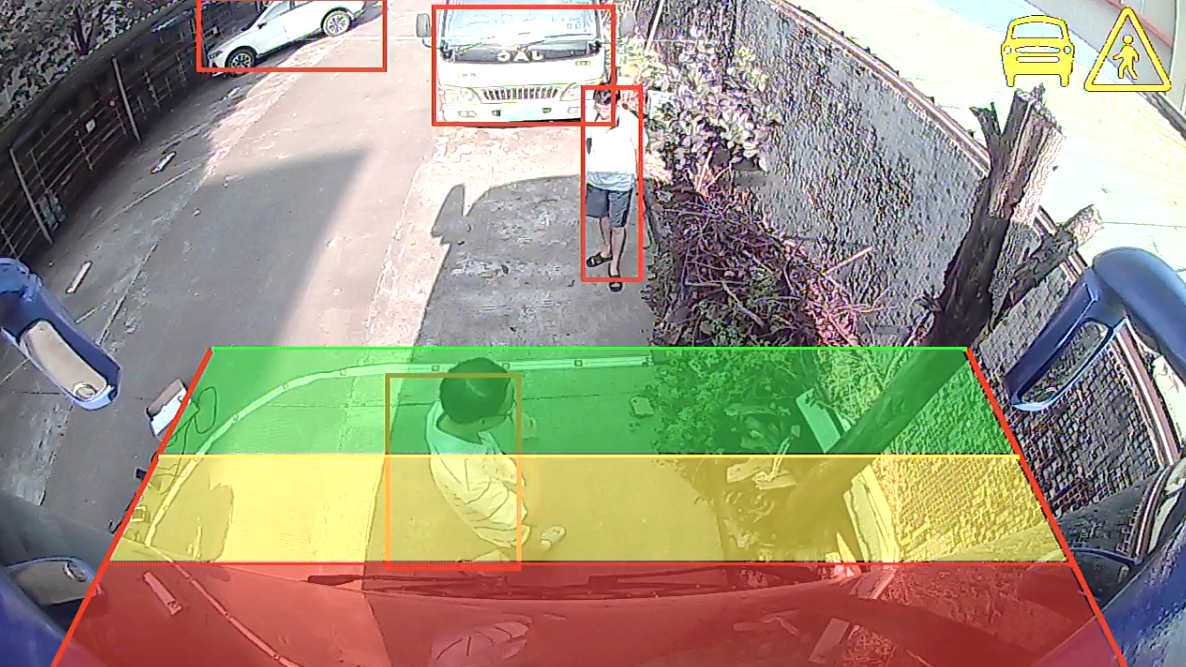

    It can detect bicycle/electric bicycle riders, pedestrians, and vehicles. Users can activate or deactivate the pedestrian and vehicle detection alert function at any time. (According to user preferences, the camera can be installed on the left, right, rear, or overhead position)

    AI 03

    Wide Angle View

    The cameras use a wide angle lens, achieving a horizontal angle of 140-150 degrees. Detection range adjustable between 0.5m to 10m. This offers user a broader range for monitoring blind spots.

    AI 05

    Audio Alert

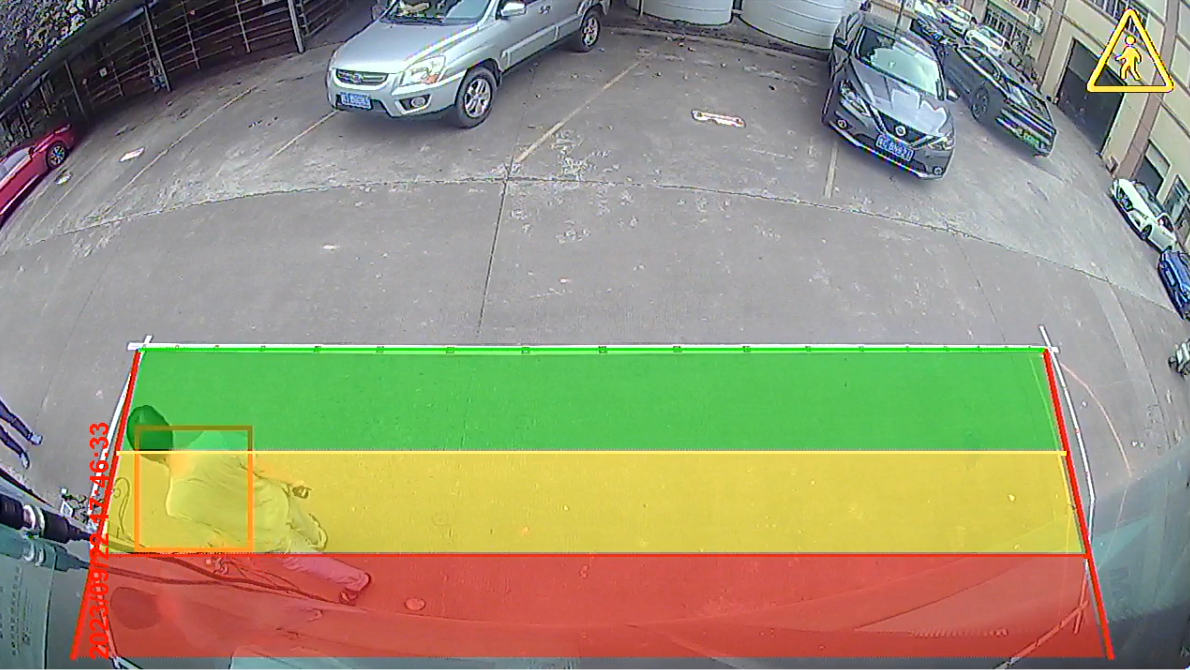

    Provides a single channel alarm audio output, capable of being connected to the monitor, model TF78 or external alarm box for alerts. It can emit blind spot danger warnings (when selecting the buzzer option, different colored zones emit distinct frequencies of sound - the green zone emits a "beep" sound, the yellow zone emits a "beep beep" sound, the red zone emits a "beep beep beep" sound, ). Users also have the option to choose voice prompts, such as "Warning, the vehicle is turning letf"

    AI 06

    IP69K Waterproof

    Designed with IP69K-level waterproof and dustproof capabilities, ensuring long-lasting durability and providing superior image quality.

    AI 07


    The 7inch monitor supports UTC function, with GPS speed detection for activating alarms, and can calibrate and adjust the BSD blind spot lines. It also has a built-in alarm system. (Single-screen display does not support split-screen display, 1 monitor + 1 AI camera combination)
