4CH 1080P Trailer Truck Fleet Management Live Streaming DVR Dash Camera LTE GPS WIFI 4G Dashcam
Product Specification
● 10.1inch TFT Monitor
● Resolution: 1024x600
● 16:9 wide screen display
● Brightness 550cd/m2
● Contrast 800 (Typ.)
● 4 Ways inputs AHD1080P/720P/CVBS
● Viewing angle: 85/85/85/85(L/R/U/D)
● PAL& NTSC
● Power supply: DC 12V/24V compatible.
● Power Consumption：6W
● with video recording function
● SD card MAX256G
● 4 channel synchronous preview
● Frame rate: 25/30fps
● Video input: 1.0Vp-p
● Operation: Remote /press button
● Operatiom Temprature - 20 ～70 ℃
● Dimension:(L)251*168(W)*(T)66.5mm
NOTE: New SD card must be formatted on the monitor, otherwise it will cause uncertainty while recording. Operation: Menu/System Settings/Format
Application
Suitable for car, truck, engineering vehicle, fire engine, RV, ambulance and so on
The dash cam has LTE, GPS, WIFI and 4G functions, as well as a built-in GPS function. Such a dash cam can record information such as driving route, driving speed and vehicle location while the vehicle is in motion, and provide data transmission function through LTE, WIFI and 4G networks, which facilitates real-time monitoring and data analysis. At the same time, the use of GPS positioning function can help owners know exactly where their vehicles are located, making it easier to drive and find parking spaces.

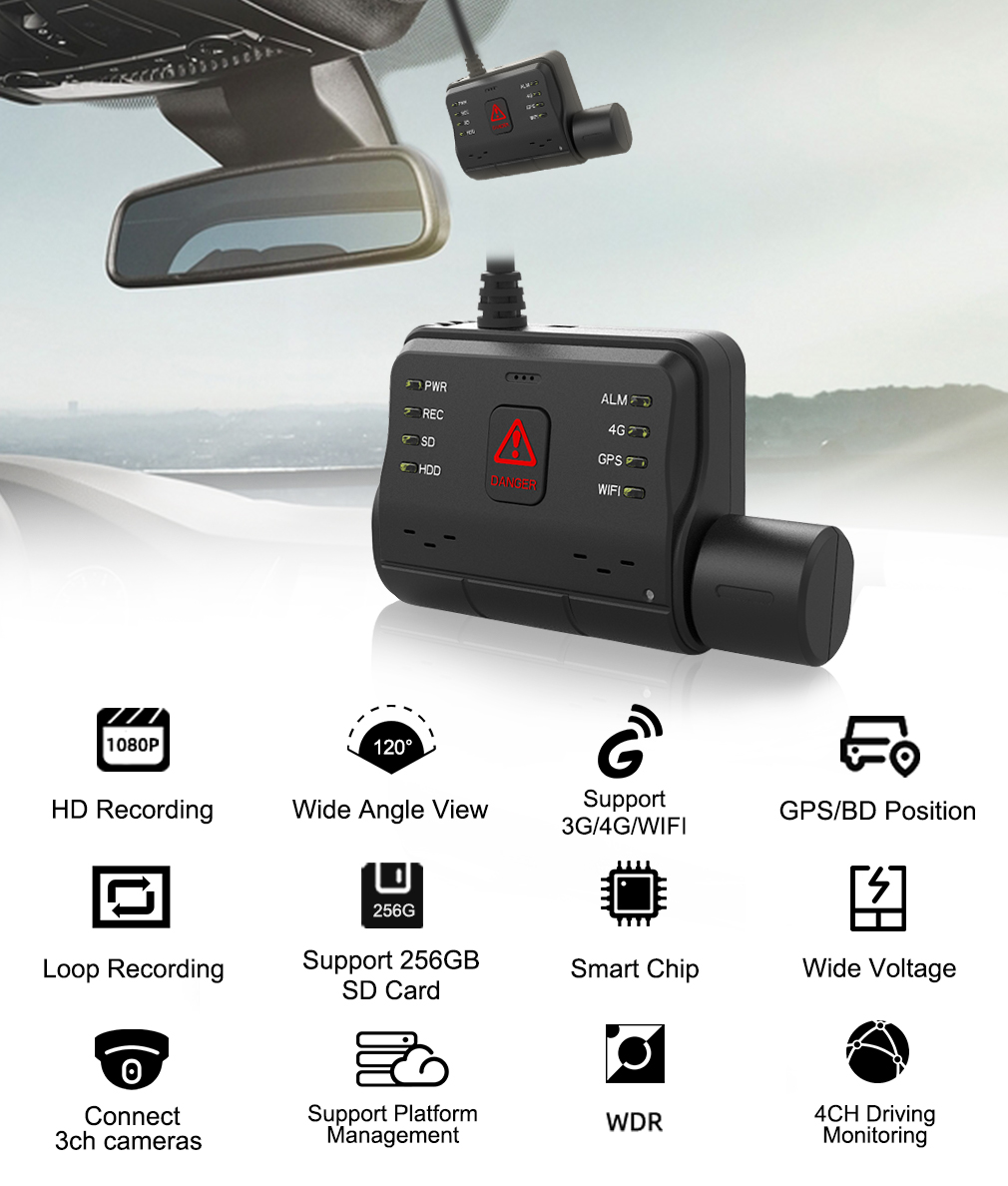

Product Details
Built-in high performance HiSilicon chipsets, coded with H.264 standard, high compression rate and clear image quality
Built-in G-sensor, monitor driver’s behavior in real time
Auxiliary ranging for reverse image
Video horizontal and vertical mirror adjustment
Built-in 1ch AHD 1080P camera

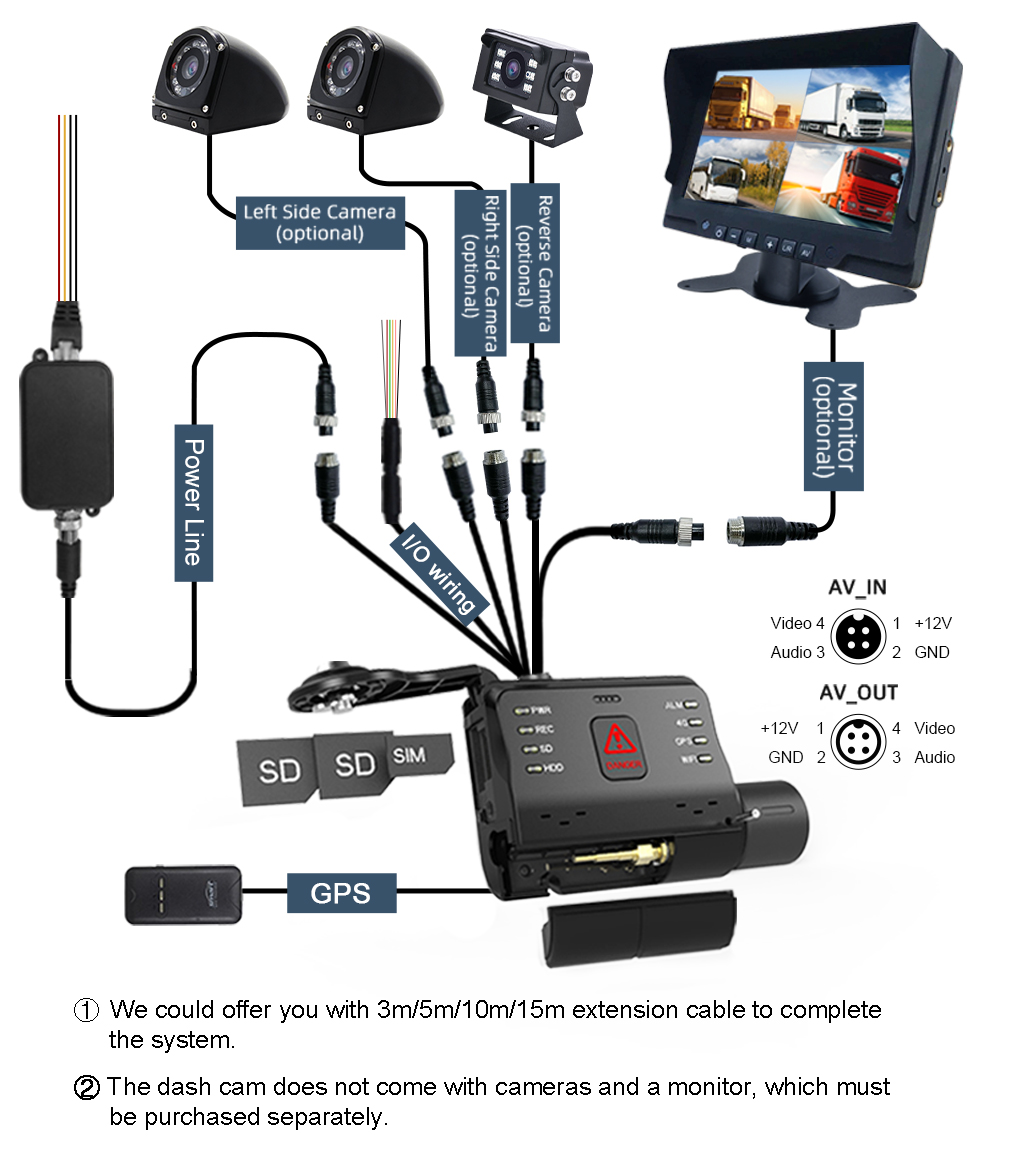

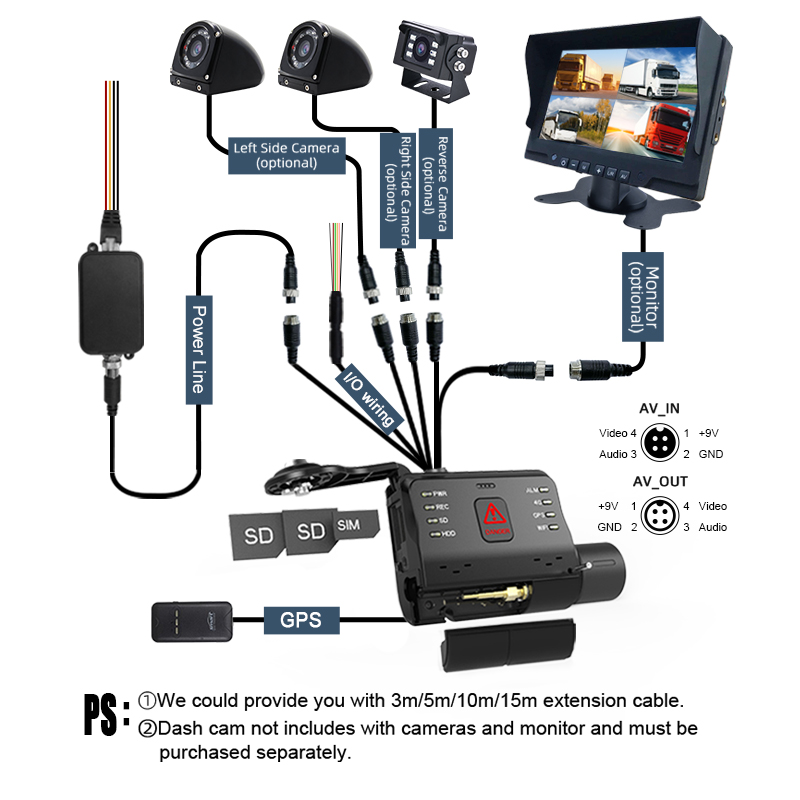

Can connect with 3 external cameras (for optional)
Standard configuration: not including monitor; but can connect an external monitor with CVBS output

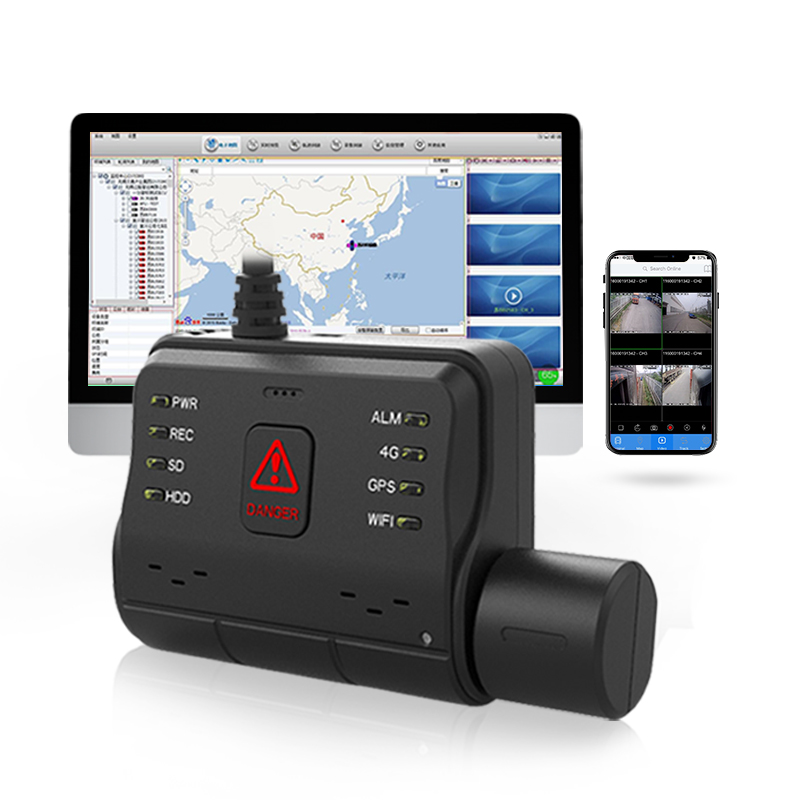

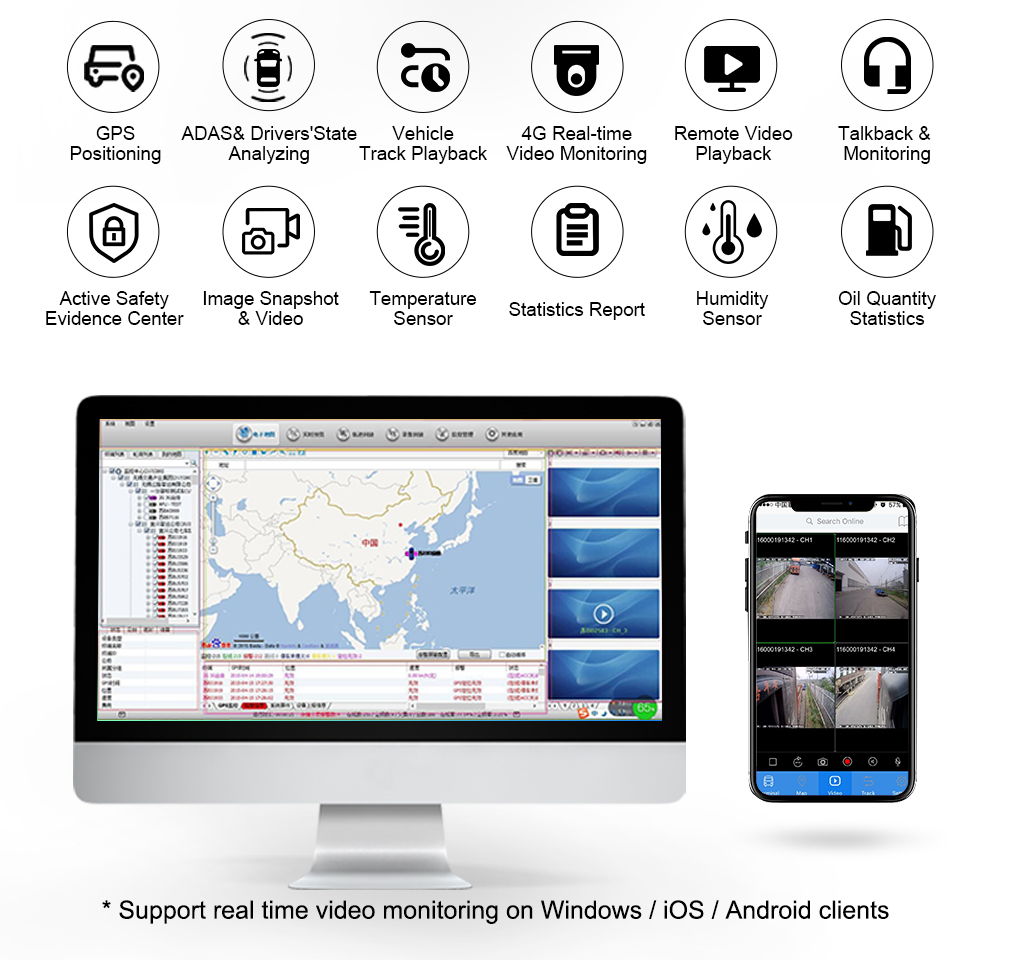

Support platform management (4G function for optional)

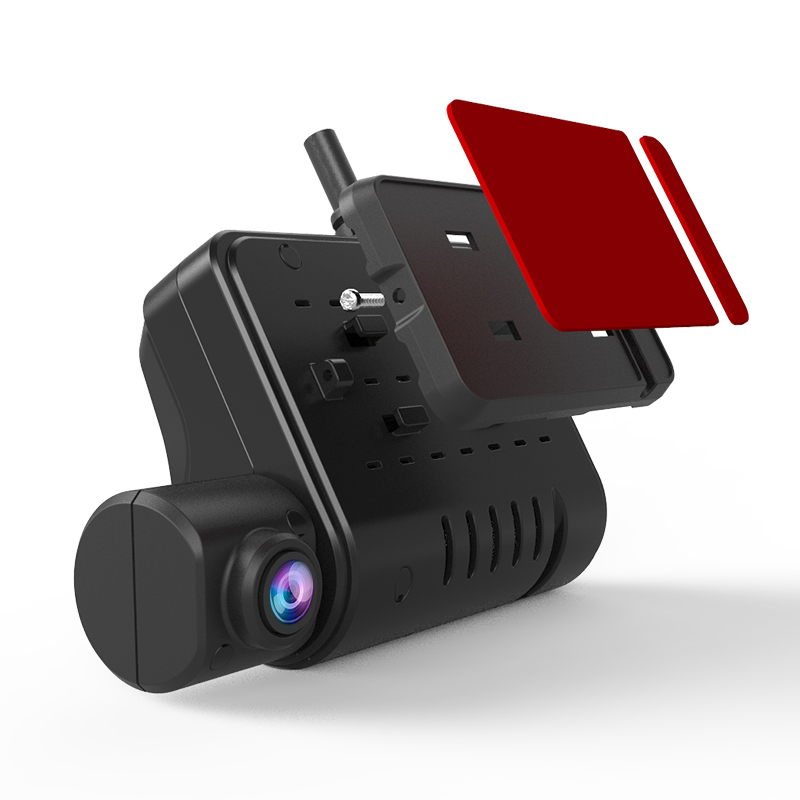

Product Display
Data Storage

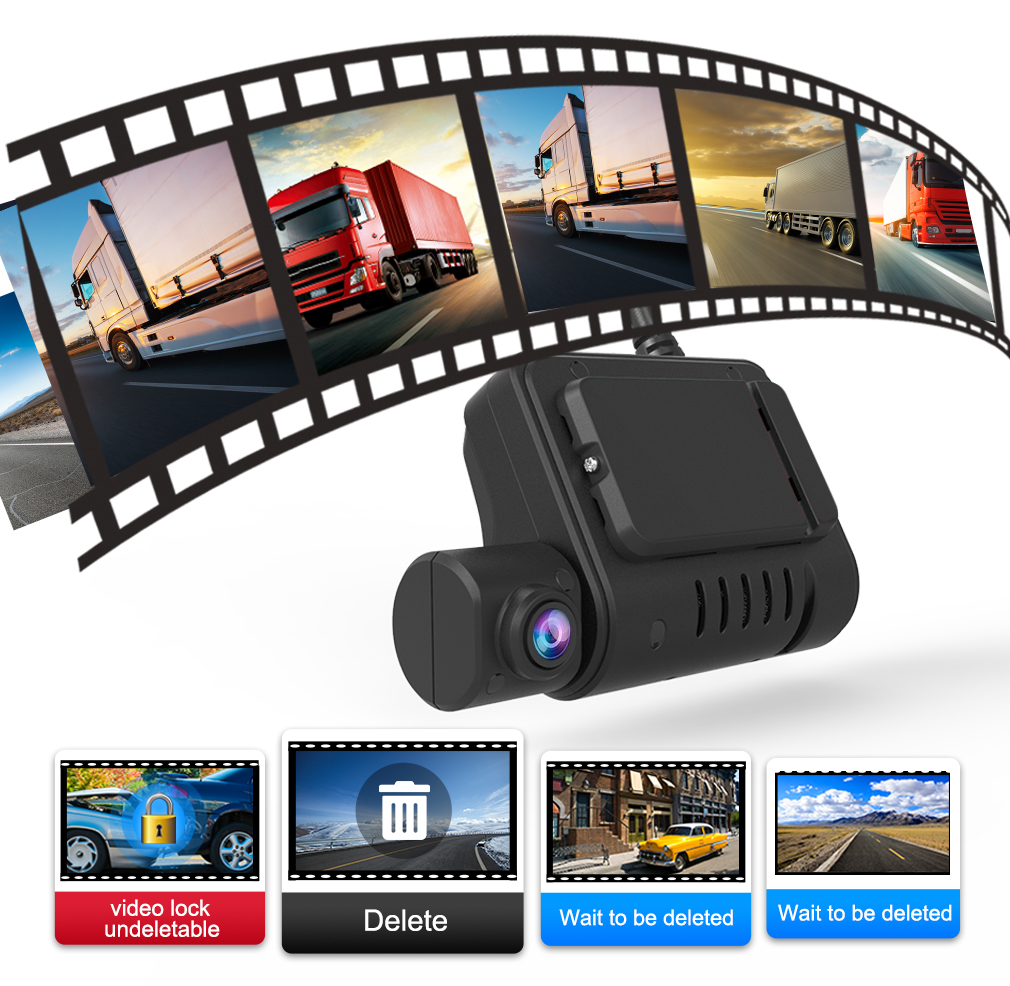

● Special file management system to encrypt and protect the data
● Proprietary technology to detect the bad track of the hard drive which can make sure the continuity of video and long service life of the hard drive
● Built-in ultracapacitor, avoid data loss and SD card damage caused by sudden outage
● Support USB plug-in Mobile hard disk (only support SSD), max 2TB
● Support SD card storage, max 256GB
Transmission Interface
● Support GPS/BD optional, high sensitivity, fast positioning
● 2.4GHzSupport wireless download by WIFI, 802.11b/g/n, 2.4GHz
● Built-in 3G/4G, support LTE/HSUPA/HSDPA/WCDMA/EVDO (for optional)
Product Parameter
|
TECHNICAL PARAMETER |
||
|
Item |
Device Parameter |
Performance |
|
System |
Main Processor |
Hi3521A |
|
Operating System |
Embedded Linux OS |
|
|
Operating language |
Chinese/English |
|
|
Operating Interface |
Graphical menu interface, support mouse operation |
|
|
Password Security |
User password/Admin password |
|
|
Video&Audio |
TV System |
PAL/NTSC |
|
Video Compression |
H.264 |
|
|
Image Resolution |
1080P/720P /960H/D1/CIF |
|
|
Playback Quality |
1080P/720P /960H/D1/CIF |
|
|
Decoding Quality |
Support 4ch 1080P real time, but 1ch 1080P for standard configuration |
|
|
Recording Quality |
Class 1-6 optional |
|
|
Image Display |
Support 1, 2, 3, 4 display (for optional) |
|
|
Audio Compression |
G.726 |
|
|
Audio Recording |
Video & Audio synchronized recording |
|
|
Recording & Playback |
Recording Mode |
Auto recording/alarm recording/alarm recording lock |
|
Video Bit Rate |
Full frame 4096Mbps，6 classes image quality optional |
|
|
Audio Bit Rate |
8KB/s |
|
|
Storage Media |
SD card |
|
|
Video Inquiry |
Inquiry via channel. Recording type or alarm type |
|
|
Local Playback |
Signal channel playback as time |
|
|
Software Upgrading |
Upgrading Mode |
Manual/Auto/Remote Upgrading |
|
Upgrading Method |
USB interface/Wireless network/SD card |
|
|
Interface |
AV Input |
1 channel 1080P AHD camera; 3 channel aviation AV input (for optional) |
|
AV Output |
1channel aviation AV output, video format: CVBS |
|
|
Alarm Input |
4 digital inputs |
|
|
SD card |
2 SDXC high speed card (max 256G) |
|
|
USB interface |
1 MiniUSB (support mouse operation, USB plug-in SSD) |
|
|
Ignition Input |
1 ACC Signal |
|
|
UART |
1 TTL Level |
|
|
LED Indication |
PWR/REC/SD/HDD/ALM/4G/GPS/WIFI |
|
|
Disk Locker |
1 |
|
|
Extended Function |
GPS |
Support detecting antenna Plug in/Unplug/Short circuit |
|
2G/3G/4G |
Support CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE |
|
|
WIFI |
802.11b/g/n, 2.4GHz |
|
|
Others |
Power Input |
DC：9V~36V |
|
Power Consumption |
Standby 3mA Max power consumption 18W @12V 1.5A @24V 0.75A |
|
|
Working temperature |
-20 - 70℃ |
|
|
Storage |
1080P 1.8G/H/Channel 960H 750M/H/ Channel |
|
|
Dimension (L*W*H) |
162mm*153mm*52mm |
|
