9” TFT LCD Digital Reverse Rear View Monitor HD Color Screen 9 inch Screen Car Monitor
Product Model: TF92-02
Screen Type: TFT-LCD
Screen Size: 9 inch (16:9)

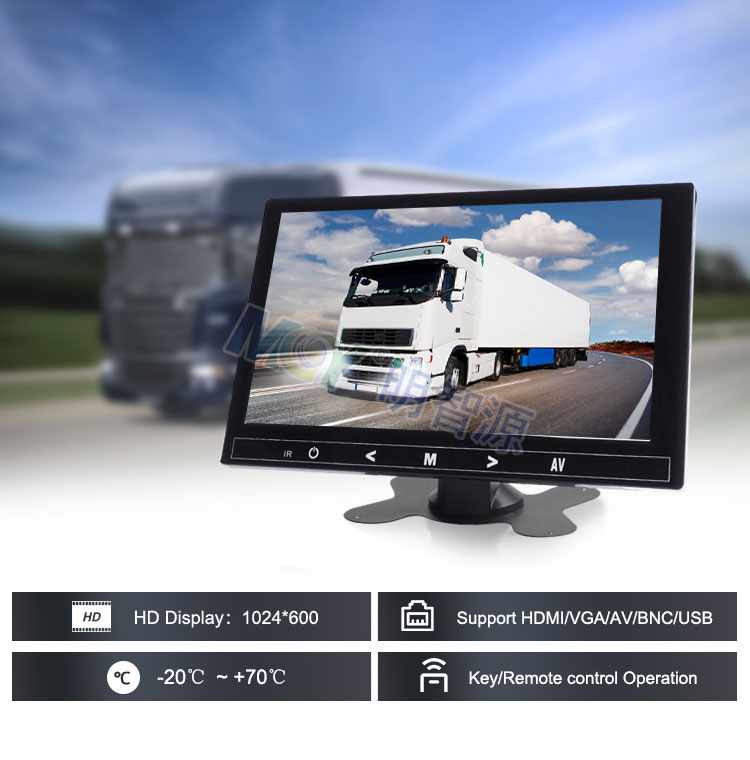

Resolution: 1024 (RGB) * 600 Pixel
Screen Backlight: LED
Brightness: 250cd/m2
Active Display Area: 196.61 (W) * 114.15 (H) [mm]
Viewing Angle: 85/85/65/85 (L/R/U/D)
Power Supply: DC 12V-24V
Power Consumption: 6w

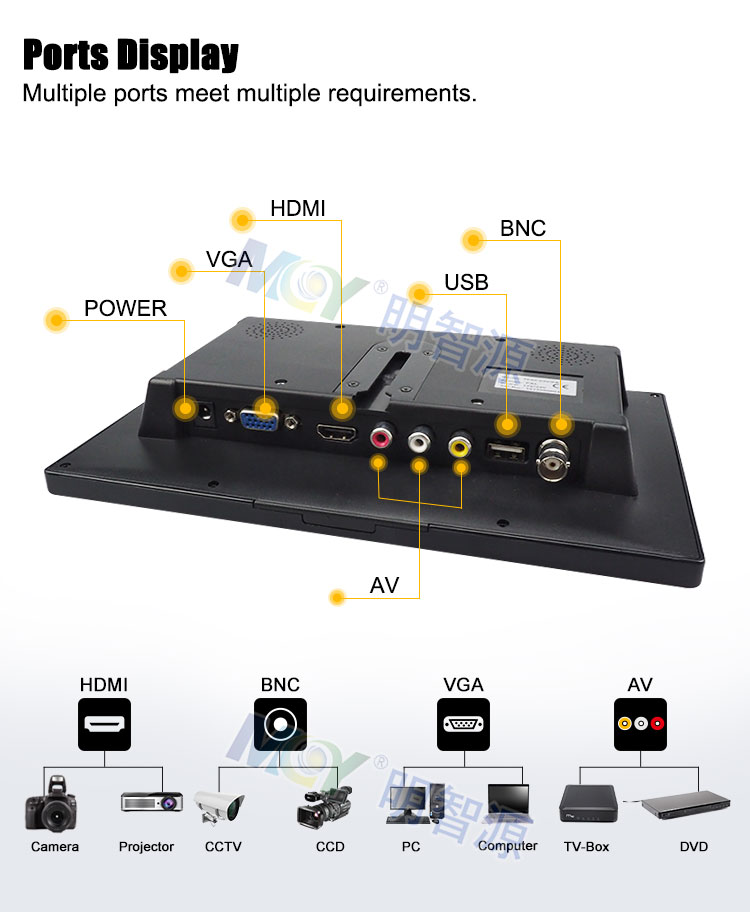

Signal Interface (s): HDMI/VGA/AV/BNC/USB
TV System: PAL/NTSC
Language Menus: Totally 8 Languages, like Chinese/English/Russian/French, etc.

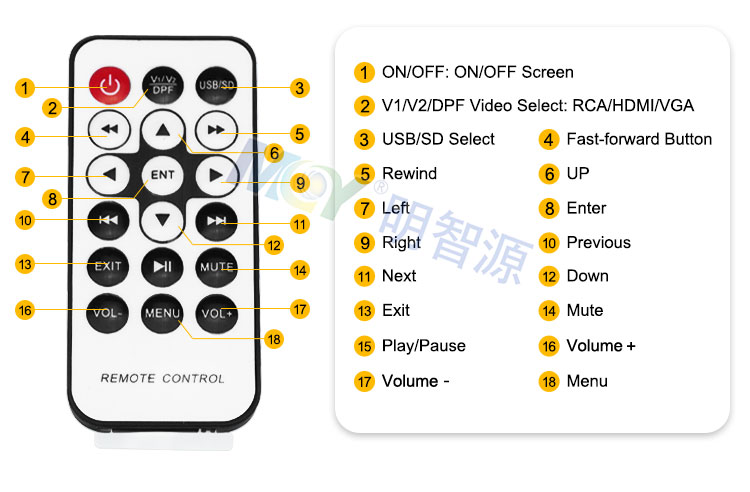

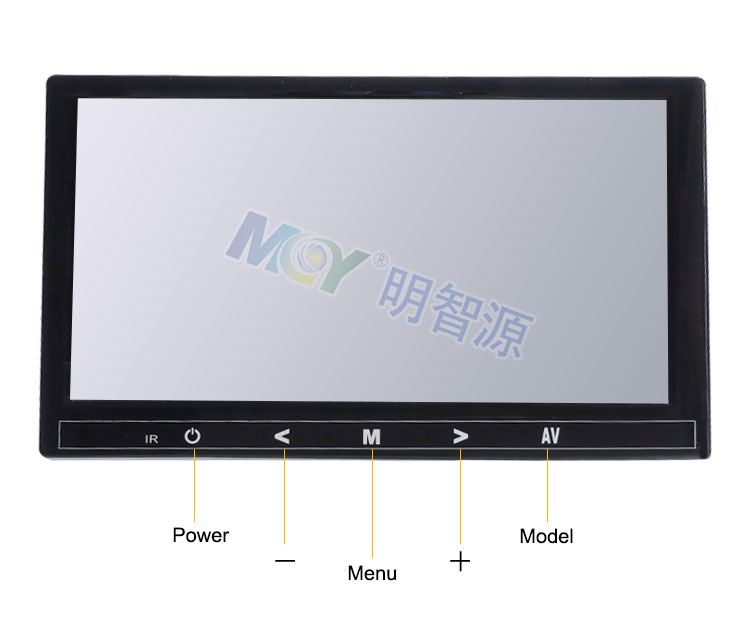

Operation Method: Full function remote controller/ Touch key
Image Rotation: Upper/Lower/Left/Right
Operation Temperature: -20~+70℃

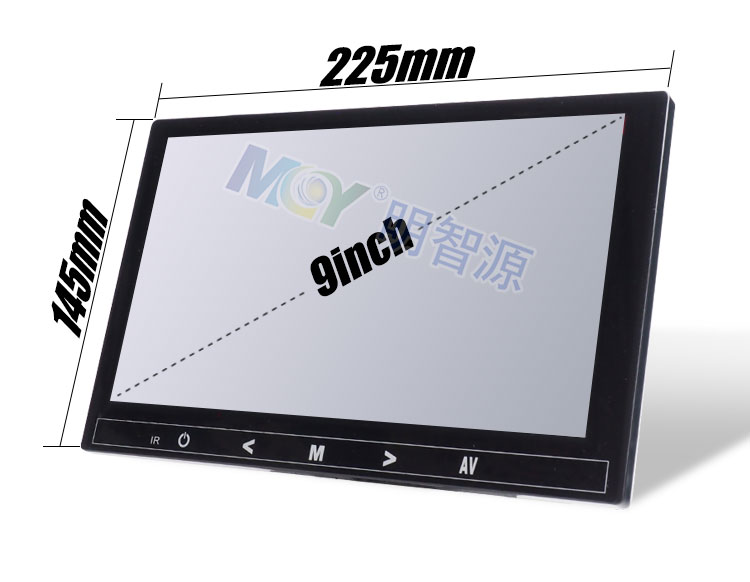

Outline Dimension: 225*145*32mm
VGA: Accept signal input: 640 * 480 / 800 * 480 / 1024 * 768 / 1280X1024 / 1366X768 / 1024X600 / 1920*1080 @60HZ
Video 1: Automatically identify NTSC / PAL system signal input

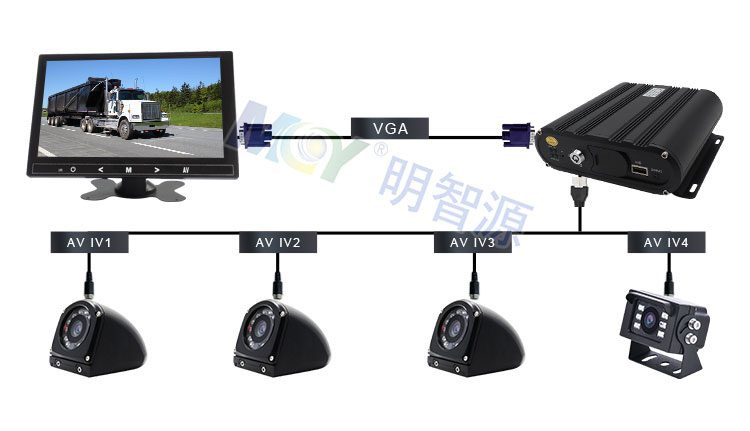

Video 2: CCTV camera signal input
Audio: Left/Right signal input
USB: Movie/Music/Photo/Text
Speaker: Built in Speaker (1*2w)
