10.1 inch Quad Mode Car Monitor TFT LCD Car Rearview Reverse Monitor Rear View Display for Bus Car Monitor

Cautions: For your safety, drivers shouldn’t watch the monitor or Operate the controls while driving.
Warning: Check all local state, and federal laws concerning video monitors in vehicles before installing. Many states have specific laws
Concerning the position of a monitor in a vehicle. Do not install in a position that the driver can watch video while driving for safety reasons.
Note: When cold the monitor may appear dark, allow time for the vehicle to warm for the monitor to return to normal.

Product Detail

Product Tags

Product Specification

● 10.1inch TFT Monitor
● Resolution: 1024x600
● 16:9 wide screen display
● Brightness 550cd/m2
● Contrast 800 (Typ.)
● 4 Ways inputs AHD1080P/720P/CVBS
● Viewing angle: 85/85/85/85(L/R/U/D)
● Power supply: DC 12V/24V compatible.

● Power Consumption:6W
● with video recording function
● SD card MAX256G
● 4 channel synchronous preview
● Frame rate: 25/30fps
● Video input: 1.0Vp-p

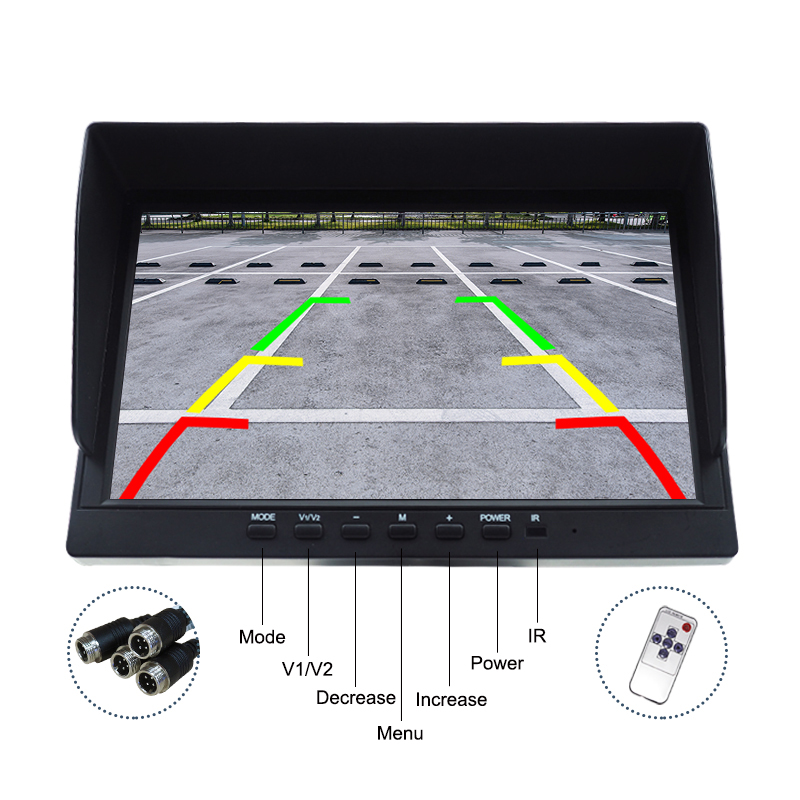

● Operation: Remote /press button
● Operatiom Temprature - 20 ~70 ℃
● Dimension:(L)251*168(W)*(T)66.5mm

NOTE: New SD card must be formatted on the monitor, otherwise it will cause uncertainty while recording. Operation: Menu/System Settings/Format

Product Details

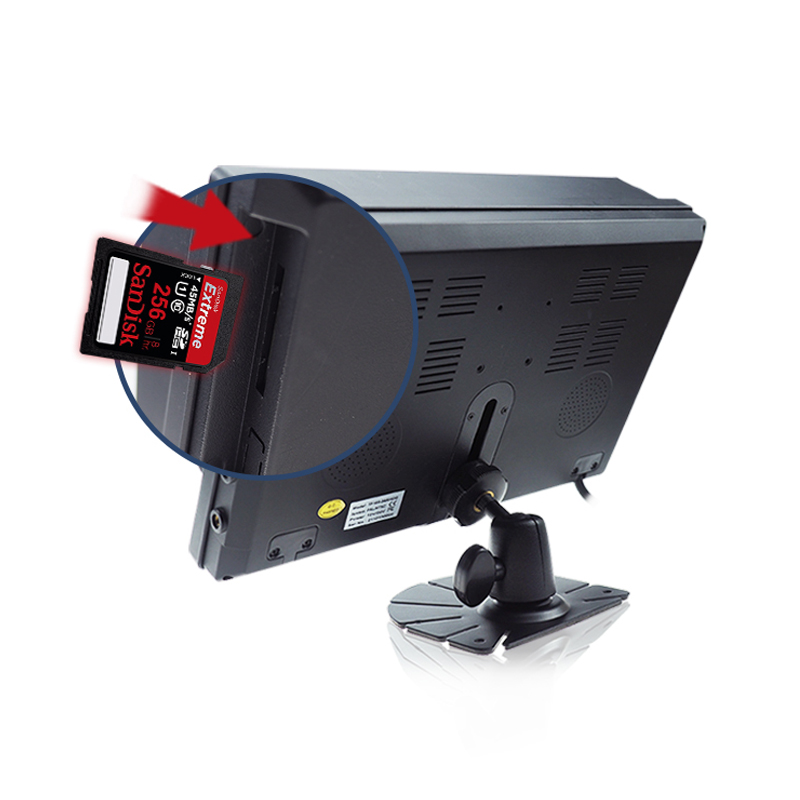

SD Card Video Recording

The system can record and save what is displayed on the screen. With loop recording function, when the SD card is full, the system will automatically overwrite the older videos.(Note: The package not includes SD card, please contact us for more information.)

Easy Installation

10.1" video recorder quad monitor back up camera kit, support 4CH video input for quick and easy connection, voltage ranging from DC 12-24V power supply, widely used in commercial vehicles, trucks, buses, vans, trailer and etc.

Product Display

Product Parameter

Product Name

10.1 inch Quad Mode Car Monitor TFT LCD Car Rearview Reverse Monitor Rear View Display for Bus Car Monitor

Screen Type

10.1inch TFT Monitor

Screen Size

16:9 wide screen display


1024 (RGB) * 600 Pixel

Power Supply

DC 12-24V



Video Input



SD card MAX256G

Frame Rate

25/30 fps

Power Consumption

3.2W (not incl. camera)
