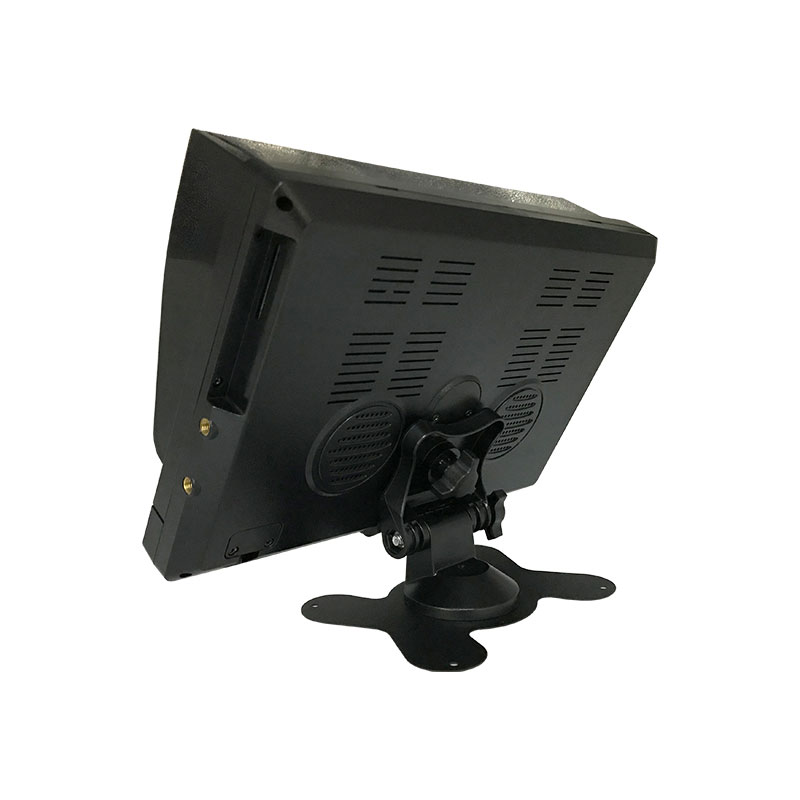

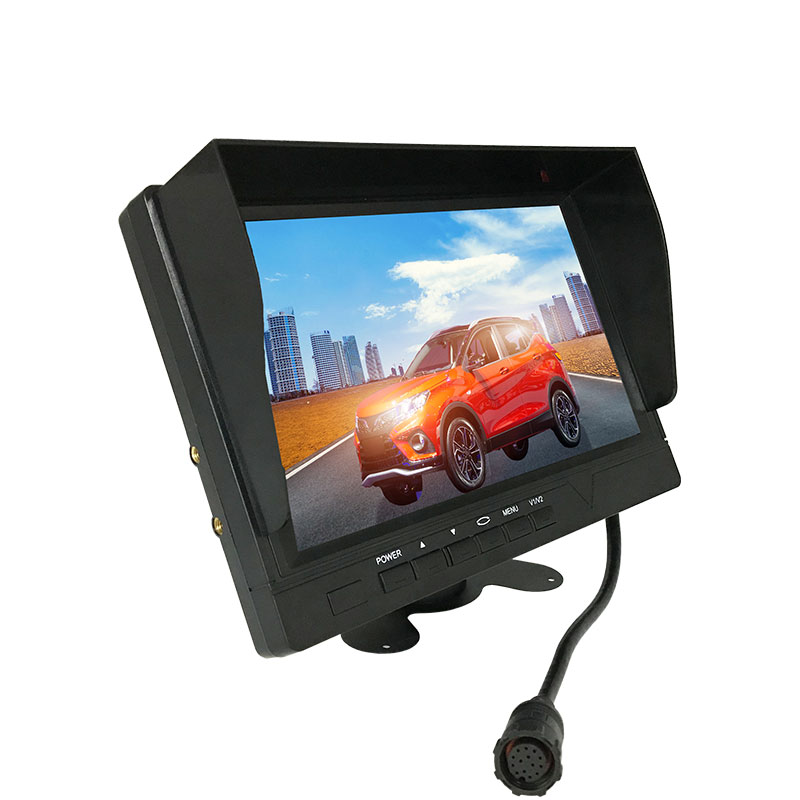

9 Inch Quad Split Screen TFT LCD Color Car Monitor for Bus Truck Fleet Management

● CAUTIONS ●
Cautions: For your safety, drivers shouldn’t watch the monitor or Operate the controls while driving.
Warning: Check all local state, and federal laws concerning video monitors in vehicles before installing. Many states have specific laws
Concerning the position of a monitor in a vehicle. Do not install in a position that the driver can watch video while driving for safety reasons.
Note: When cold the monitor may appear dark, allow time for the vehicle to warm for the monitor to return to normal.

Send email to us

Product Detail

Product Tags

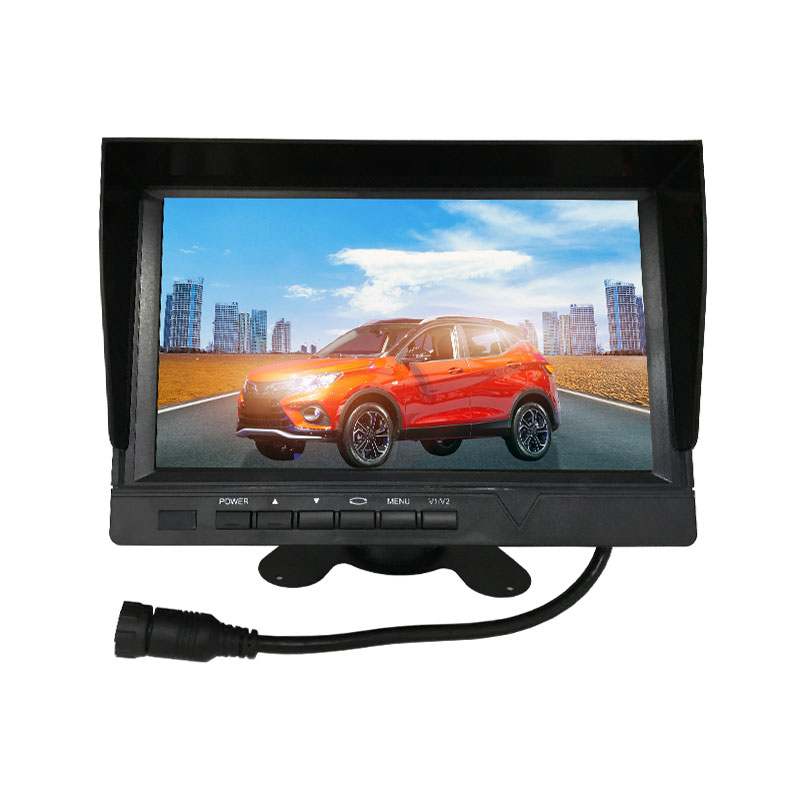

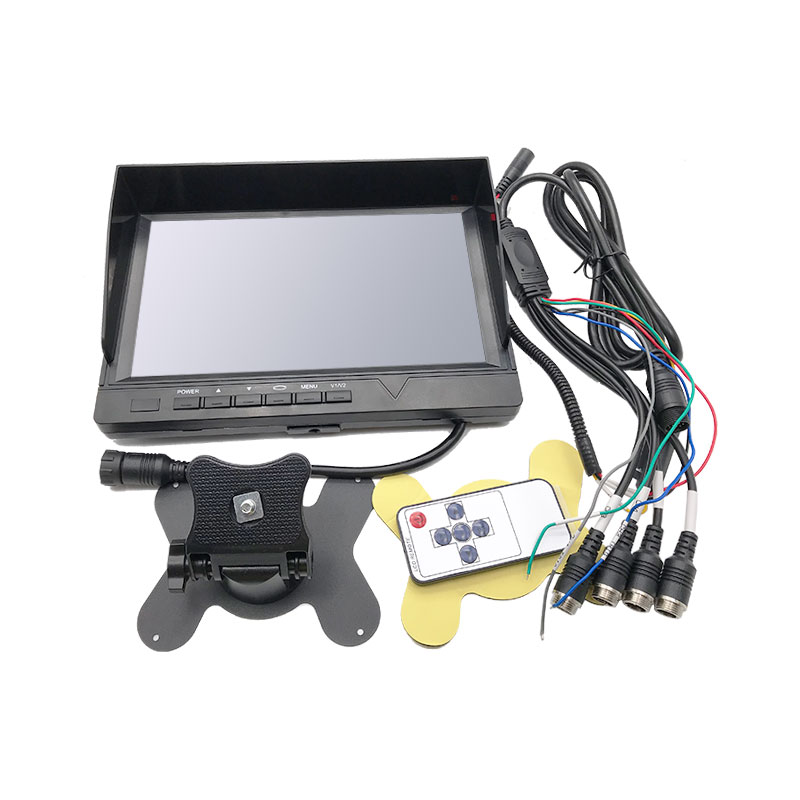

9 Inch Quad Split Screen TFT LCD Color Car Monitor for Bus Truck Fleet Management (5)

Product Specification

● 9inch TFT LCD Monitor
● 16:9 wide screen display
● 4 Ways AV inputs
● PAL& NTSC auto-switching

● Resolution: 1024x600
● Power supply: DC 12V/24V compatible.
● High resolutions with quad Pictures.
● PIN connector suitable for Camera

NOTE: New SD card must be formatted on the monitor, otherwise it will cause uncertainty while recording. Operation: Menu/System Settings/Format

Application

Product Details

9 Inch Quad Split Screen TFT LCD Color Car Monitor for Bus Truck Fleet Management (4)

TRIGGER LINE

T2 Green connect power of Reversing Light for trigger full screen display CH2
T3 Blue connect power of Left Turn Signal for trigger full screen display CH3
T4 Gray connect power of Right Turn Signal for trigger full screen display CH4
(NOTE: The above connection is for reference, specific connection depends on practical application.)

Video Recording Operation

Format
New SD card must be formatted on the monitor, otherwise it will cause uncertainty while recording. Operation: Menu/System Settings/Format
Video recording
Insert SD card, short press Image Rollover for video recording (4 channel video recording synchronously). During the recording, the screen will display a flash red dot. Please note that you cannot operate the menu while video recording. Short Press again for stopping recording.
Video playback
Long press Image Rollover to enter the video file while recording. When perform this action, the video recording will end immediately. Or press MENU to operate after recording end. Press UP and DOWN to find folders and video files. Press Image Rollover to confirm/play/pause. Press MENU to delete a single video file or a folder including all videos in the folder. Press V1/V2 to back to previous step.

System Settings

Recording Time
The recording stored as a video every minute by default, which can be set in the menu / system settings / loop recording. Each minute of video (4 channel synchronization) occupy about 30M. A 64G SD card can continuously record for about 36 hours. The earliest recorded video will be automatically deleted when the storage is full. If necessary, please take out the memory card and copy it in the computer
Time Setting
Press MENU/Time Setting to setup time, press UP and Down button to adjust time, press Image Rollover to switch options
Display Setting
Press MENU/Display Setting to setup display, press UP and Down button to adjust Brightness / Saturation / Contrast / Hue
Segmentation Setting
Press MENU/Segmentation Setting. There is six segmentation mode for option.
Rollover Setting
Press MENU/System Setting/ Rollover to flip the image
More Functions
Press MENU/System Setting to setup reverse line style, reverse delay time, language setting, mirror image, etc.
