7 inch 1080P 2ch AHD Camera Video Input Digital TFT LCD Rear View Parking Backup Bus Truck Car Monitor
Product Specification
●7inch TFT LCD Monitor
●16:9 or 4:3 wide screen display
●Resolution: 1024*600
●Brightness: 400cd/m2
● Contrast: 500:1
● PAL& NTSC
● Video Input: AHD 1.0Vp-p or CVBS 1.0Vp-p 75Ω
●Support AHD 1080P/720P /CVBS
●Viewing Angle: L/R:85°U/D:85°
● Power supply: DC 12V/24V Output： DC12V(To camera power)
●Power consumption: Max 5W
●4PIN connector suitable for Camera (options)
●Working Temperature: -20℃～70℃

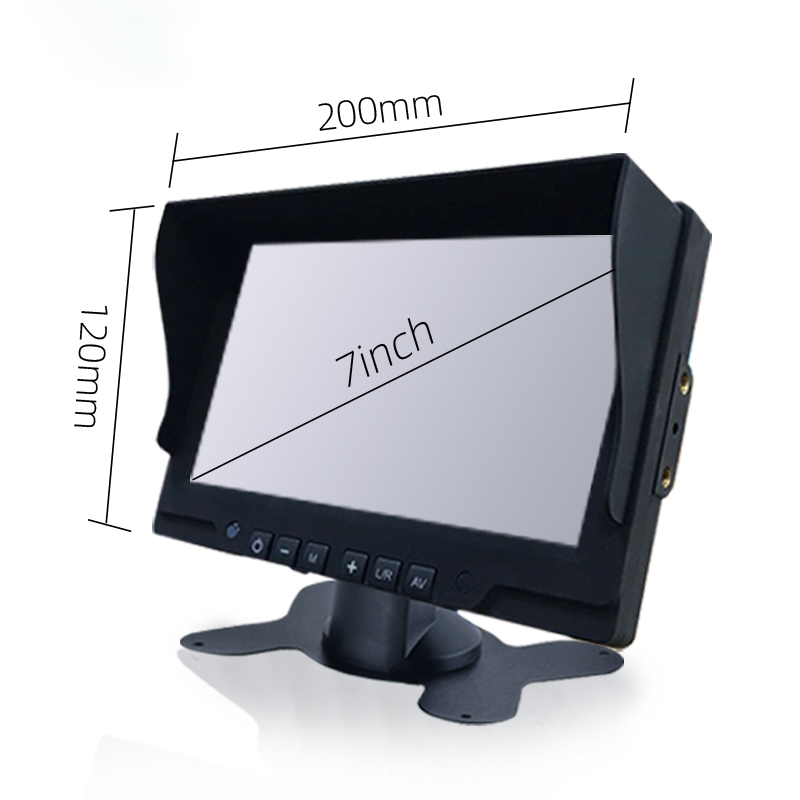

●Size : 200(L)*120(W)* 65(T)mm
Application

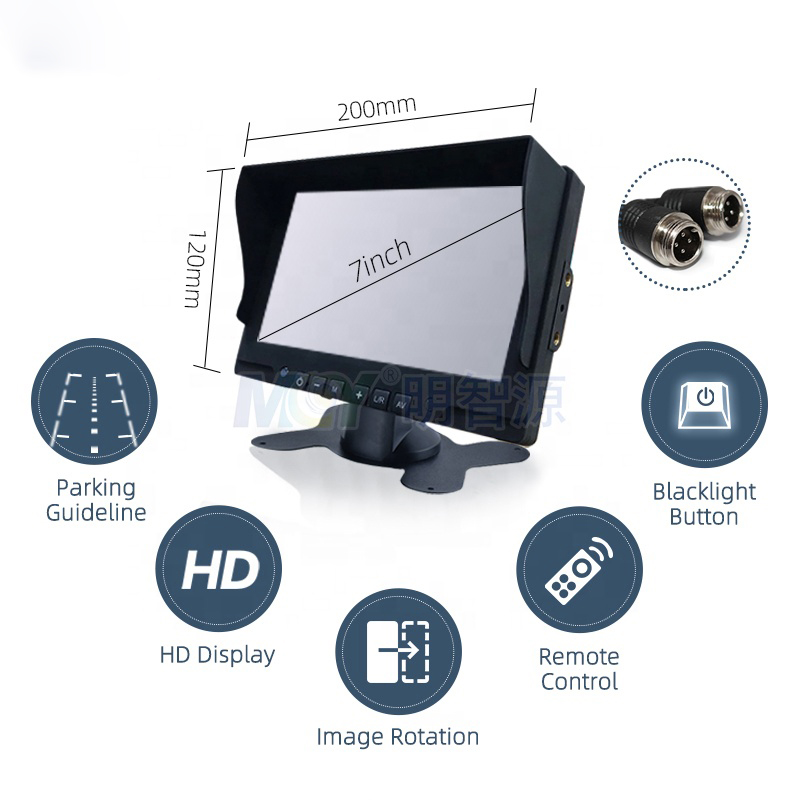

Product Details
1, TFT LCD monitor with wide view angle and high resolution display
2, Picture image adjustable for vertical, mirror and normal viewing
3, 7 languages selectable for user operation:English, French, Portuguese, Spanish, Dutch, German, Italian
4, Multiple video formats available:1080P/720P /CVBS
5, Automatic backlighting for screen, automatic adjust to the brightness of environment
6, Full-function remote control
7, Speaker available and users can control the sound level from control panel
8, Operates from 10 - 32V. Supports 12V or 24V automobile battery
Product Display
Product Parameter
|
Product Name |
TF72-02AHD |
|
Screen Type |
TFT-LCD |
|
Screen size |
7 inch (16 : 9) |
|
Brightness |
250cd/m2 |
|
Viewing angle |
U:70 / D:45 / L:70 / R:70 |
|
Power Consumption |
5W |
|
Signal interface |
AV1/AV2 Compatible CVBS Input |
|
TV System |
NTSC/PAL/AUTO |
|
Language Menus |
Totally 8 languages, like Chinese/English/Russian/French, etc |
|
Image Rotation |
upper/lower/left/right |
|
Operatiom Temperature |
- 2 0 ～ 7 0 ℃ |
