Monitor Backup Reversing AI Camera Security System for Warehouse Safety

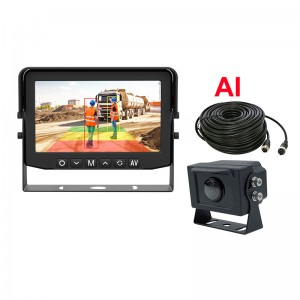

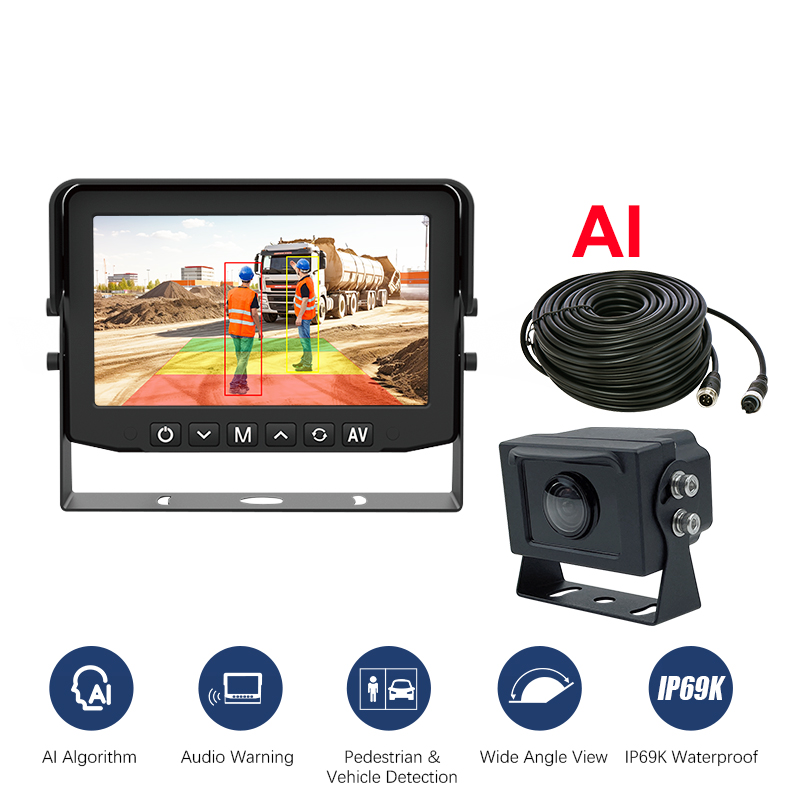

Package List
1pcs 7inch monitor, model: TF78-02AHD-B;
1pcs AI reversing camera, model: MRV1D-10KM-28-M;
1pcs 10 meter video cable, model: E-CA-4DM4DF1000-B.


Product Detail

Product Tags

TF78

7inch HD Monitor
Parking assistance

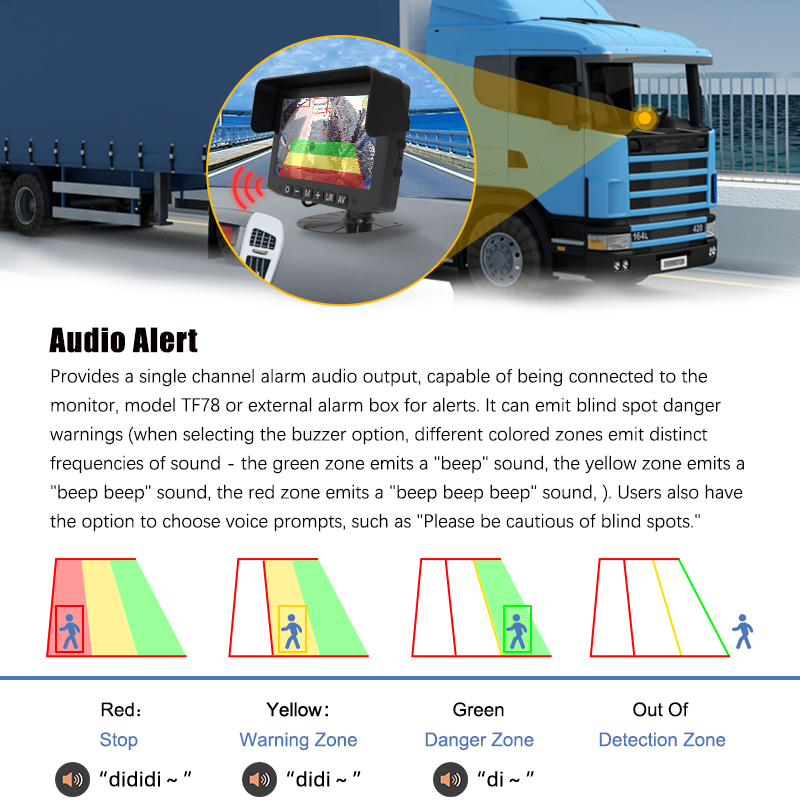

Visual & audible alarm to alerthe driver when detect pedestrian/cyclists
Warning distance can be adjustable: 0.5m-20m

Alarm Speaker(optional)

Audible & Visual alarm to alert pedestrian/cyclists stay awayfrom the bus.
Audible alarm signal can be customized.

MRV1D

AHD 720P Al camera

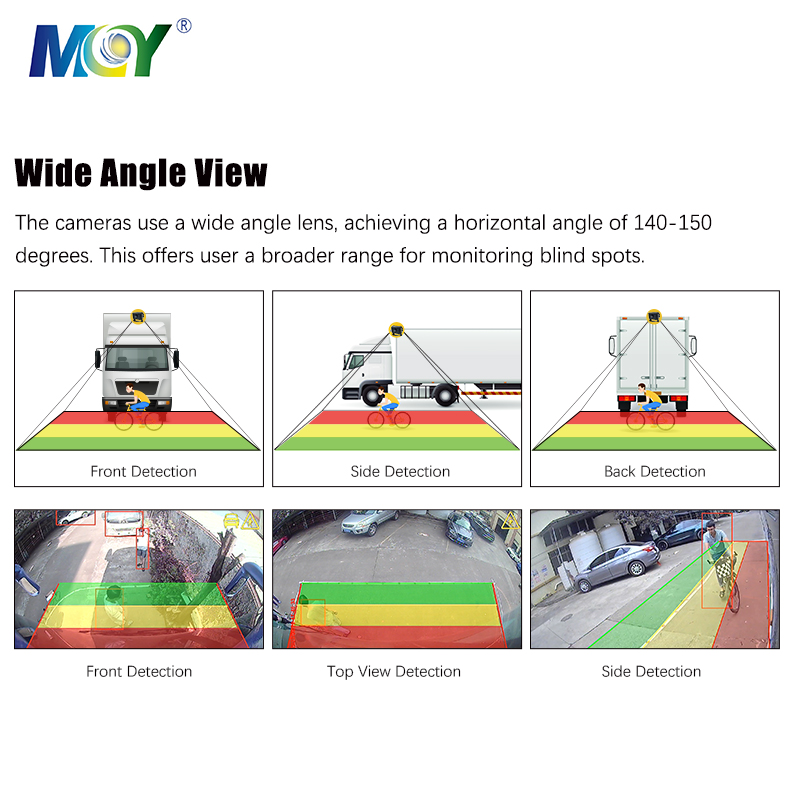

Reverse blind spot full coverage
HD IR night vision

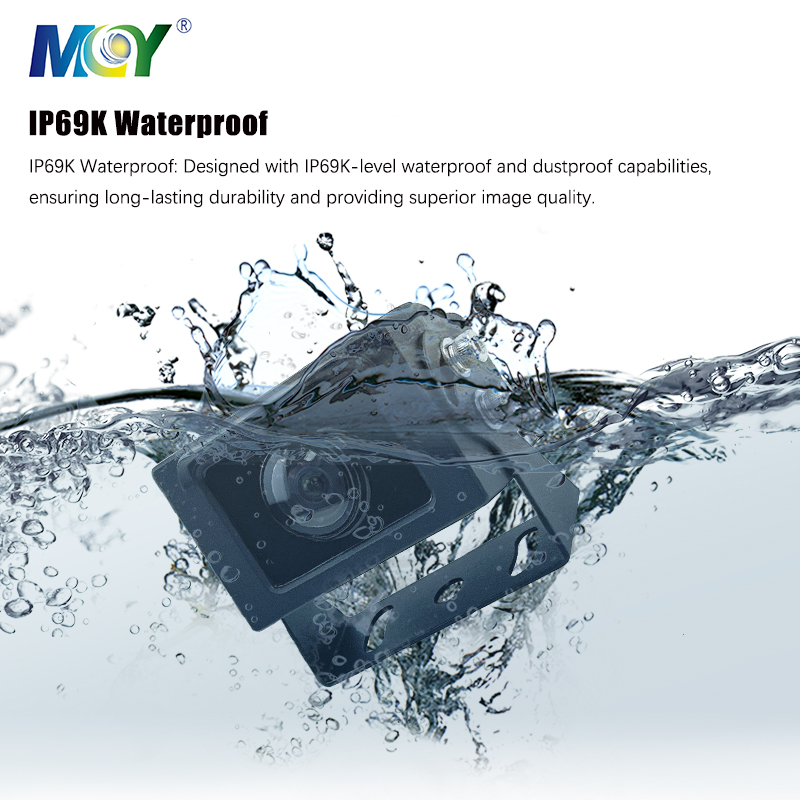

IP69K waterproof

Application

Suitable for many scenarios, such as indoor/outdoor security systems, vehicle and ship surveillance.

Vehicle side camera application for trucks is a technology solution designed to
enhance the safety and efficiency of commercial trucking operations. This
application uses cameras mounted on the side ofthe truck to capture real-time
video footage of the vehicle's surroundings. The video footage is then
transmitted to a screen in the cab, allowing the truck driver to have a better
view ofthe road and potential obstacles, such as other vehicles, pedestrians, or
cyclists

vehicle side camera application for trucks is a technology solution designed to enhance the safety and efficiency of commercial trucking operations. This application uses cameras mounted on the side of the truck to capture real-time video footage of the vehicle's surroundings. The video footage is then transmitted to a screen in the cab, allowing the truck driver to have a better view of the road and potential obstacles, such as other vehicles, pedestrians, or cyclists

Product Details

7INCH Monitor

Monitor TF78-02AHD-B
Size 7 inch (16 : 9)
Resolution 1024(H) ×600(V)
Brightness 400cd/m²
Contrast 500 (Typ.)
Viewing Angle 85/85/85/85
Power Supply DC12V /24V (10V~32V)
Power Consumption MAX 5W
Video Input AHD 1080P/720P/CVBS
TV System PAL/NTSC/AUTO
Language Chinese/English
Operation mode button, remote controller
CDS Auto dimming
BSD Blind Spot Detection Area Highlight in red
BSD Audible Alarm audio power: MAX 2W
Working Temperature - 2 0 ~ 7 0 ℃

AI Reversing Camera

Model MRV1D-10KM-28-M
Image Sensor 1/2.9”
TV System PAL/NTSC (Optional)
Effective Pixel 1280 (H) x 720 (V)
Sensitivity 0 Lux (IR LED On)
Scanning System Progressive scan RGB CMOS
Synchronization Internal
S/N Ratio More than 38dB(AGC Off)
Auto Gain Control (AGC) Auto
Electronic Shutter Auto
Back Light Compensation Auto
Infrared LED 850nm
Infrared LED Range 18 LEDs
Video Output 1 Vp-p, 75Ω,AHD
Audio Connect external voice alarm (optional)
Mirror Available
BSD algorithm Available
Lens f2.8mm Megapixel
Voice alarm volume output MAX 2W
Power Supply 9-18V DC
Power Consumption 170mA
Net Weight 210g
Weatherproof/Water Proof IP69K
Operating Temperature -20° C ~ +70 ° C
