7 inch Touch Button Waterproof Car Monitor Featured Image
  • 7 inch Touch Button Waterproof Car Monitor

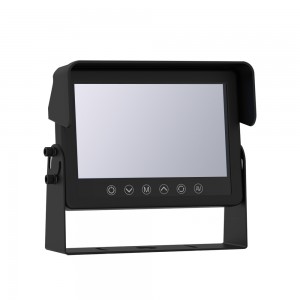

7 inch Touch Button Waterproof Car Monitor

Model: TF713-02AHD

>> MCY welcomes all OEM/ODM projects. Any inquiry, please send an email to us.


  • Screen Size: 7inch
  • Resolution: 1024x600
  • TV System: PAL / NTSC
  • Video Inputs: 2CH camera inputs,1CH trigger
  • Video Inputs Signal: AHD1080P/720P/CVBS
  • Audio Input: Optional
  • Aspect Ratio: 16:9
  • Connections: 4 Pin Din
  • Power supply: DC 12V/24V
  • Waterproof: IP69K waterproof

    • Product Detail

    Product Tags

    Features:



    ● Screen Size: 7inch 16:9
    ● Resolution: 1024(H) ×600(V)
    ● Brightness: 400cd/m²
    ● Contrast: 500 (Typ.)
    ● Viewing Angle: 85/85/85/85
    ● Power Supply: DC12V /24V (10V~32V)
    ● Power Consumption: Max. 5w
    ● Video Input: AHD 1080P 720P CVBS
    ● TV System: PAL/NTSC/AUTO
    ● Menu Language: Chinese, English, Japanese, Korean, Russian
    ● Operation Mode: Touch Button, remote controller
    ● Connections: M12 4PIN Aviation (Standard)
    ● Audio Input: 2 channel (optional)
    ● Trigger Line: Display full screen when trigger is activated
    ● Working Tempeature: -20~70℃
