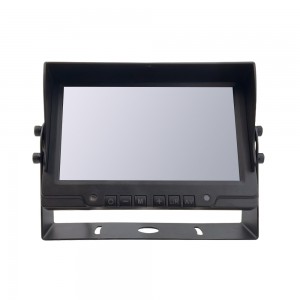

7 inch HD TFT LCD Color Monitor (1024×600) Featured Image
  • 7 inch HD TFT LCD Color Monitor (1024×600)

7 inch HD TFT LCD Color Monitor (1024×600)

Model: TF72-02AHD

>> MCY welcomes all OEM/ODM projects. Any inquiry, please send an email to us.


  • Screen Size: 7inch
  • Resolution: 1024x600
  • TV System: PAL / NTSC
  • Video Inputs: 2CH camera inputs,1CH trigger
  • Video Inputs Signal: AHD1080P/720P/CVBS
  • Audio Input: Optional
  • Aspect Ratio: 16:9
  • Connections: 4 Pin Din
  • Power supply: DC 12V/24V

    • Product Detail

    Product Tags

    Features:

    ● 7inch TFT LCD Monitor

    ● 16:9 or 4:3 wide screen display

    ● Resolution: 1024*600

    ● Brightness: 400cd/m2

    ● Contrast: 500:1

    ● PAL& NTSC

    ● Audio input

    ● Built in speaker (options)

    ● Video Input: AHD 1.0Vp-p or CVBS 1.0Vp-p 75Ω

    ● Support AHD 1080P/720P /CVBS

    ● Viewing Angle: L/R:85°U/D:85°

    ● Power supply: DC 12V/24V;  Output: DC12V(To camera power)

    ● Power consumption: Max 5W

    ● 4PIN connector suitable for Camera (options)

    ● Working Temperature: -20℃～70℃
