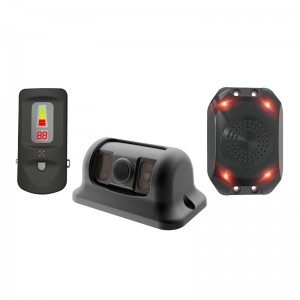

BSIS Blind Spot Information System Camera AI Warning Collision Avoidance System
Features
• HD side AI camera for real time detecting pedestrians, cyclists, and vehicles
• LED sound and light alarm box with visual and audible alarm output to remind drivers of potential risks
• External alarm box with audible and visual warnings to alert pedestrians, cyclists or vehicles
• Warning distance can be adjustable: 0.5~10m
• Application: bus, coach, delivery vehicles, construction trucks, forklift and etc.
Alarm Display of LED Sound and Light Alarm Box
When pedestrians or non-motorized vehicles are in the green area of the left AI blind spot, the LED of the alarm box lights up in green. In the yellow area, the LED shows yellow, an in the red area, the LED indicates red.If the buzzer is selected, it will produce a "di~" sound (in the green area), "didi~" sound (in the yellow area), or "dididi~" sound (in the red area). Sound alarms will occur simultaneously with the LED display.
Alarm Display of External Voice Alarm Box
When pedestrians or vehicles are detected in the blind spot, a sound warning will be played to alert pedestrians or vehicles, and the red light will flash. Users can choose to activate this function only when the left turn signal is turned on.

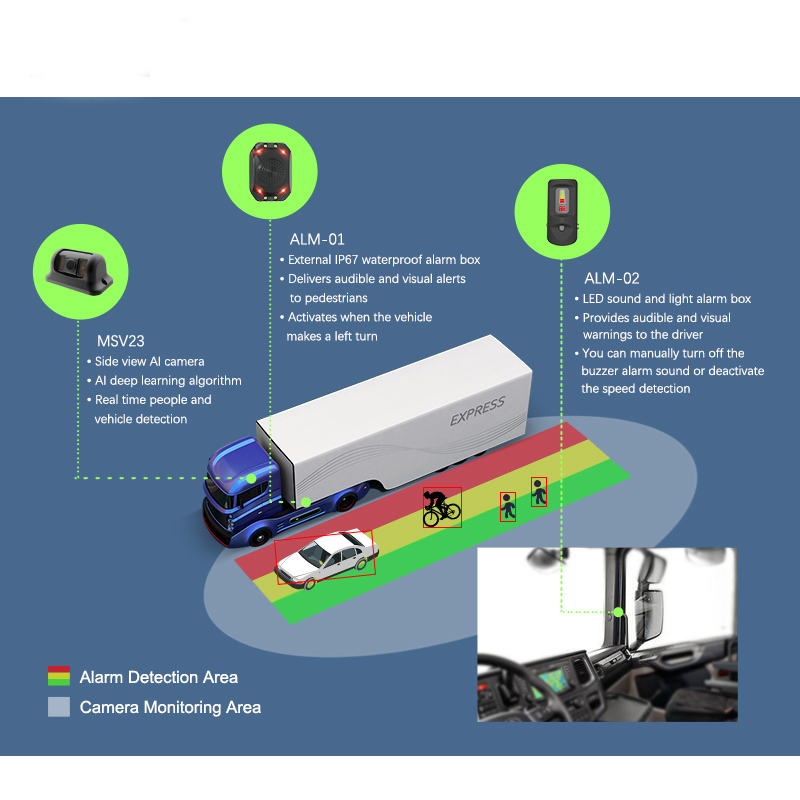

Connection Diagram
