UNECE 46 · UNECE R10 · UNECE R118 · CE · UKCA · FCC · IP69K

E-side Mirror System for Commercial Vehicles

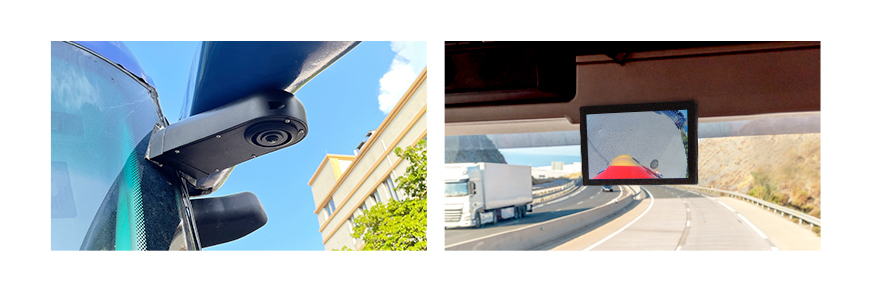

MCY E-Side Mirror System, also known as a Camera Monitor System (CMS), replaces traditional exterior mirrors with side-mounted cameras and in-cabin displays.

The system provides the required viewing areas for Class II, Class IV, Class V and Class VI applications, offering greater visibility than conventional exterior mirrors while helping reduce blind spots and improve driving safety. It delivers a clear and balanced HD image in various driving conditions, including heavy rain, fog, snow, low-light environments, and strong sunlight, helping drivers maintain a clear view of their surroundings at all times.

01 Meets ECE R46 Class II, Class IV, Class V and Class VI viewing requirements, with UNECE R46 and R10 certification.

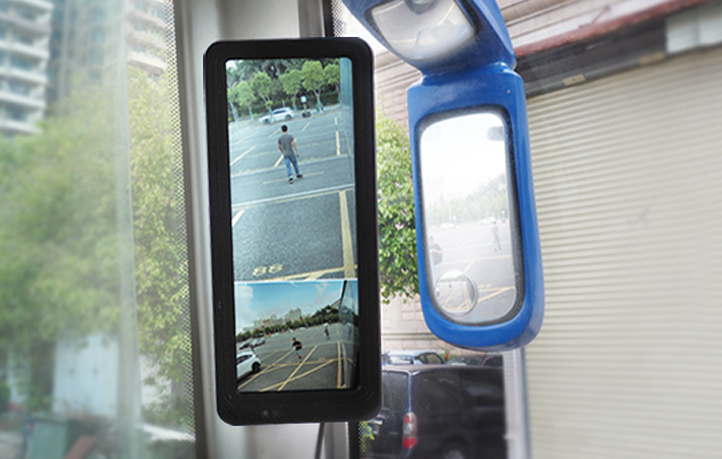

02 Replaces traditional exterior mirrors with a camera-based CMS, using cameras and in-cab monitors to provide the required viewing areas.

03 The streamlined camera housing reduces wind resistance compared with conventional exterior mirrors, helping improve vehicle efficiency.

04 The monitor automatically adjusts brightness according to ambient lighting conditions, providing a comfortable view from bright daylight to nighttime driving.

1080P

WDR Technology

Glare Reduction

Clear Vision in All Conditions

Low-Light Visibility

Auto Heating

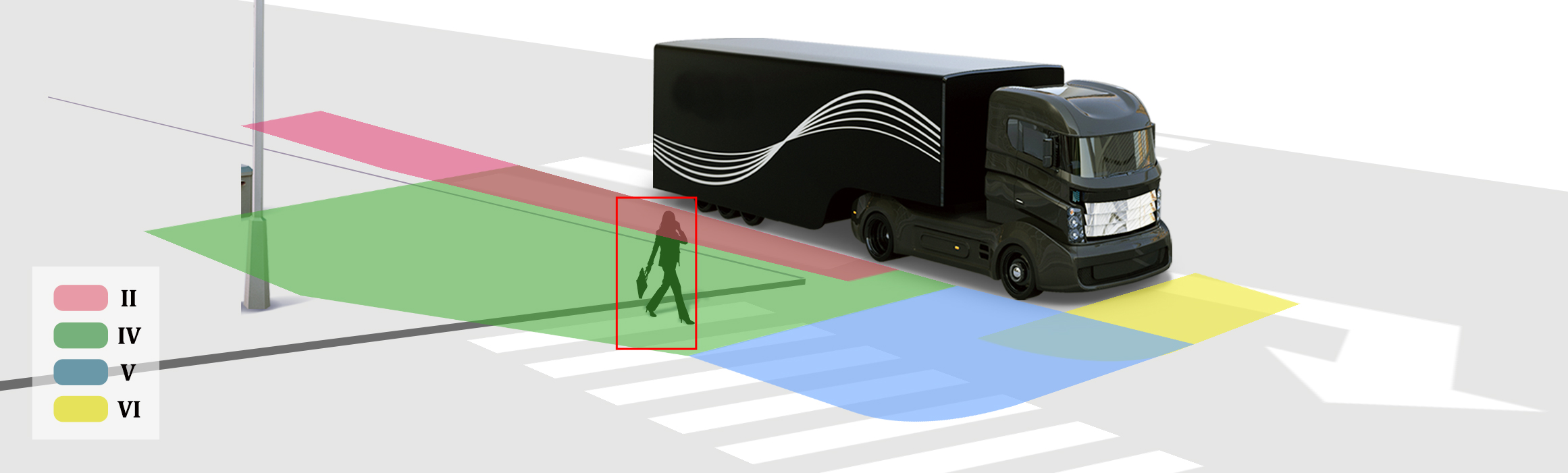

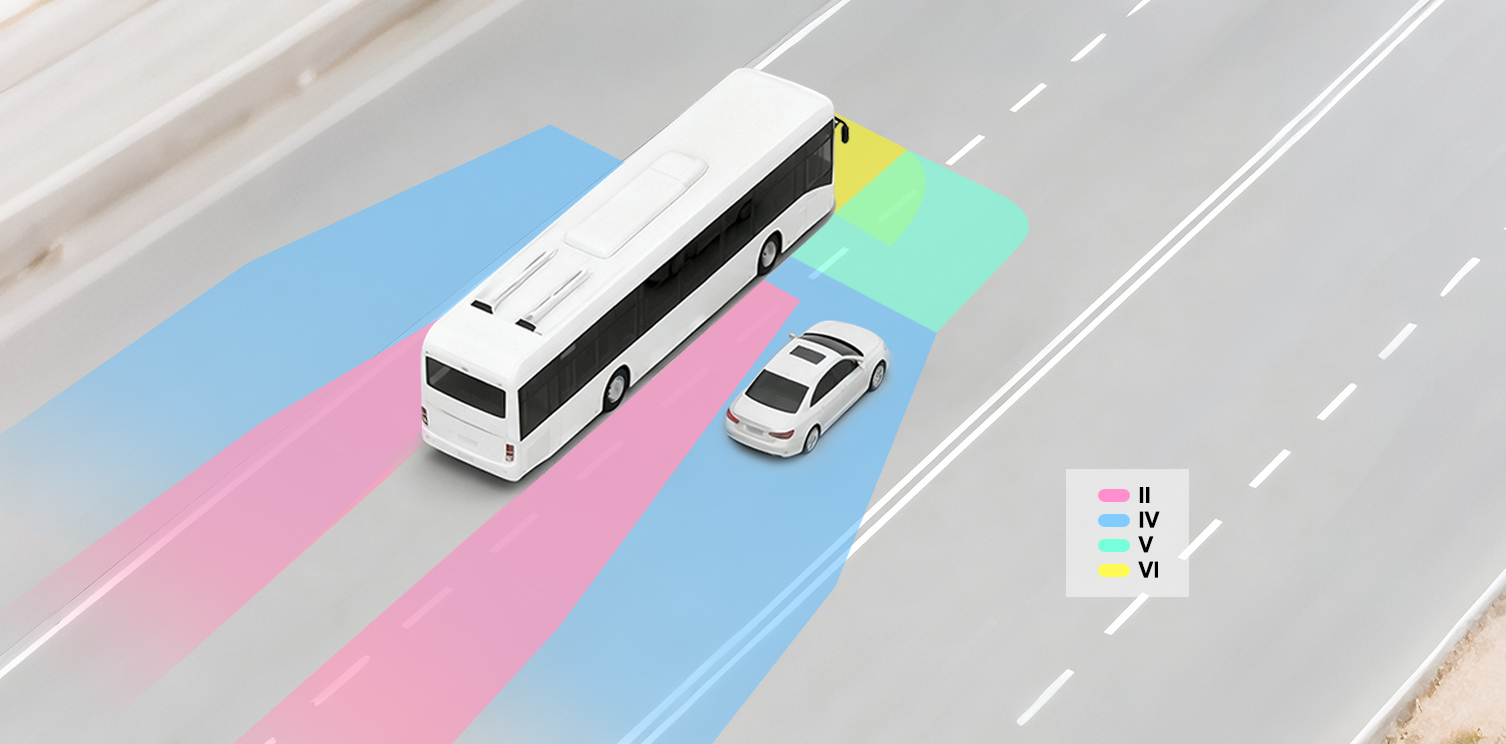

Camera Monitor Systems for Class II, IV, V and VI

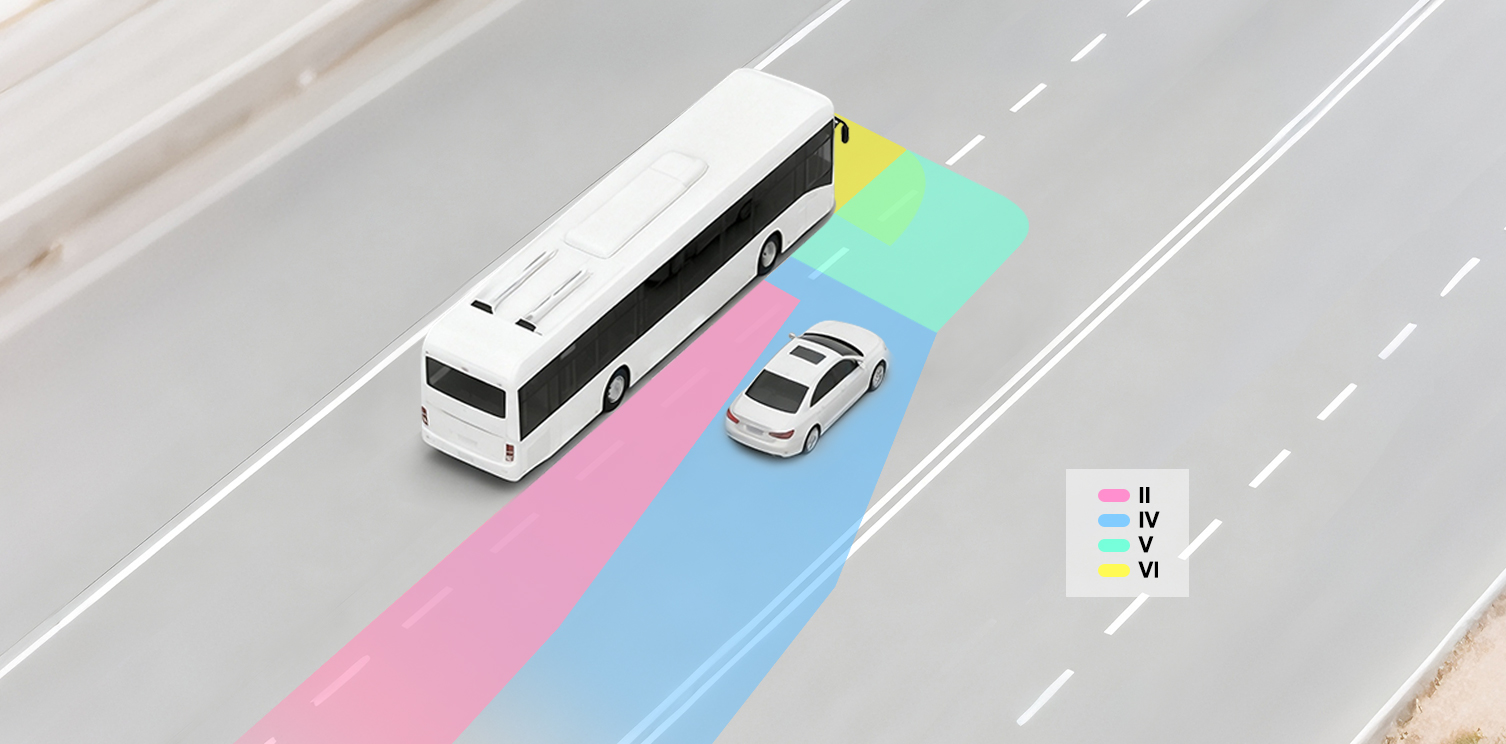

The CMS supports Class II, IV, V and VI viewing areas, using high-definition wide-angle cameras and real-time image processing to provide clear coverage around the vehicle and help reduce blind spots.

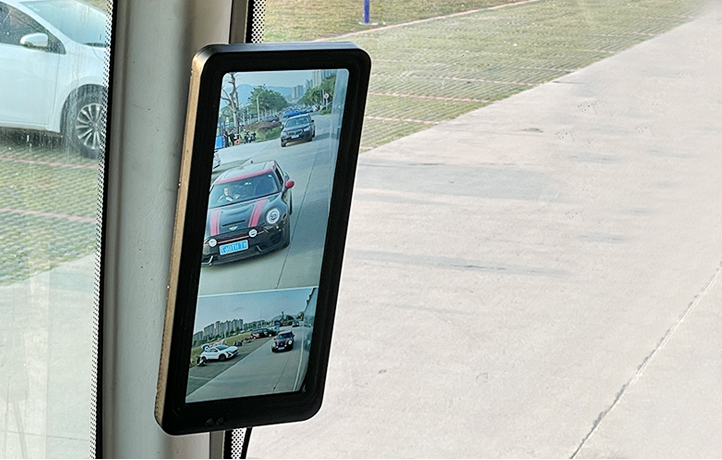

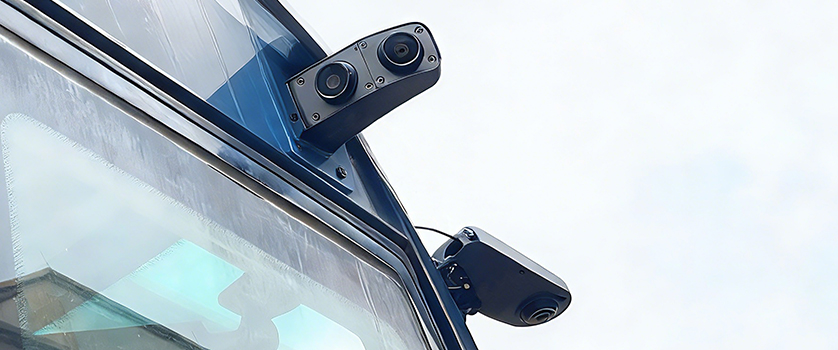

Class II IV Camera Mirror

MSV18 (Class II IV)

MSV29 (Class II IV V)

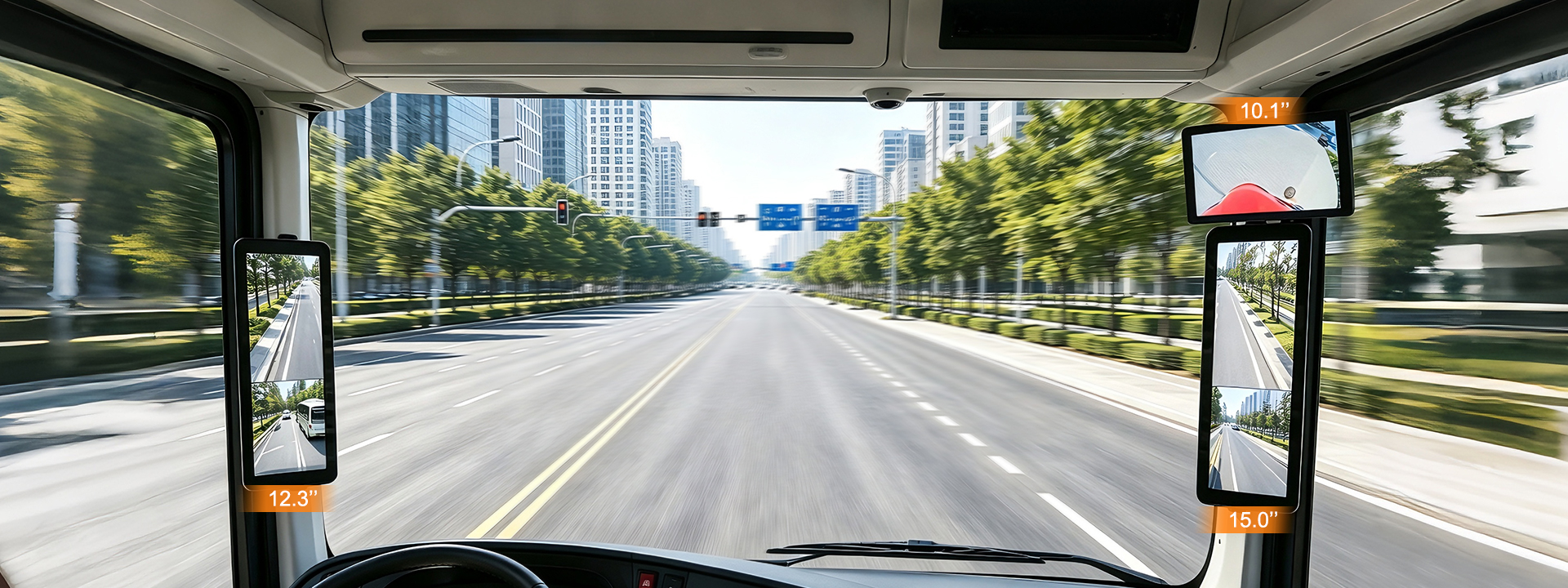

TF96

(9”)

TF1233

(12.3”)

TF1503

(15”)

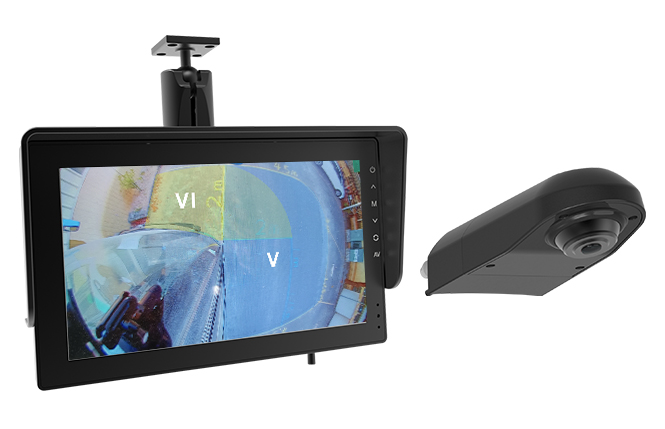

Class V VI Camera Mirror

MSV25 (Class V VI)

TF78 (7”)

TF108 (10.1”)

Clear Vision in All Conditions

MCY E-Side Mirror System delivers clear, high-definition images in a wide range of driving conditions, from heavy rain, fog and snow to strong sunlight and low-light environments. Its image processing and visibility-enhancing features help maintain a clear view of the vehicle’s surroundings in changing and challenging conditions.

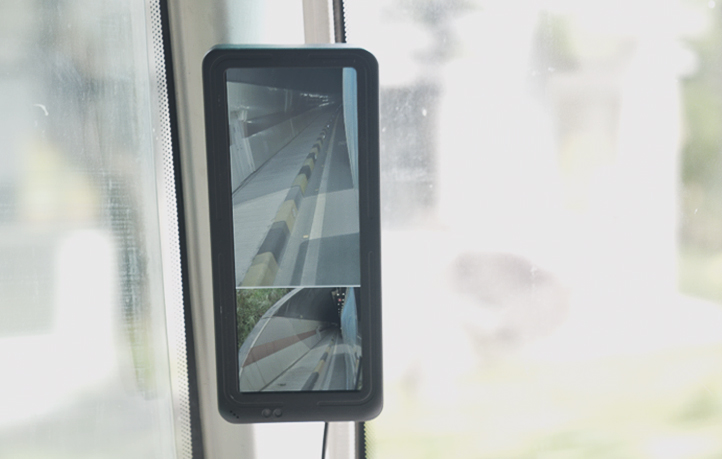

01 WDR Technology

Balances bright and dark areas to maintain a clear, well-balanced image when entering tunnels, garages, and other changing-light environments.

02 Glare Reduction

Reduces overexposure from direct sunlight, headlights and other strong light sources, helping preserve image details and maintain clear visibility in bright conditions.

03 Auto Dimming

Automatically adjusts screen brightness to match surrounding lighting conditions, providing comfortable viewing in both bright daylight and low-light environments.

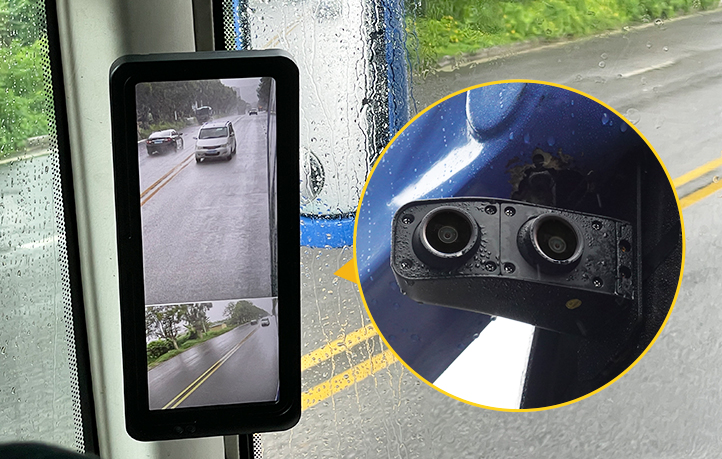

04 Clear Vision in Rain

Helps prevent water droplets from gathering on the camera lens, maintaining a clear view in rainy conditions.

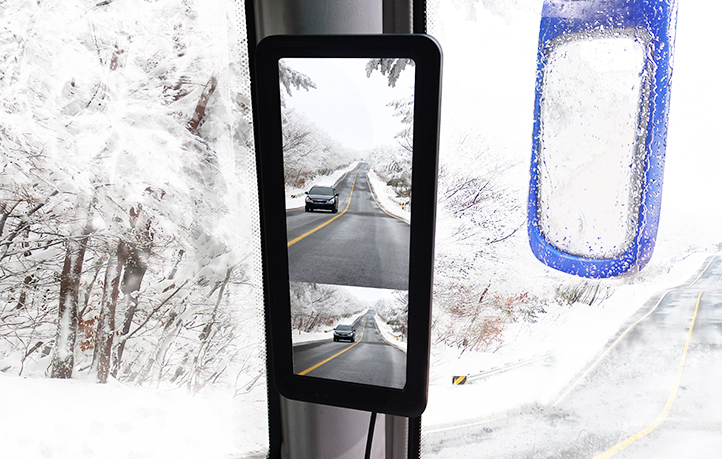

05 Frost & Ice Removal

Helps remove frost and ice in cold weather, maintaining a clear view in snow, frost, freezing temperatures and other harsh winter conditions.

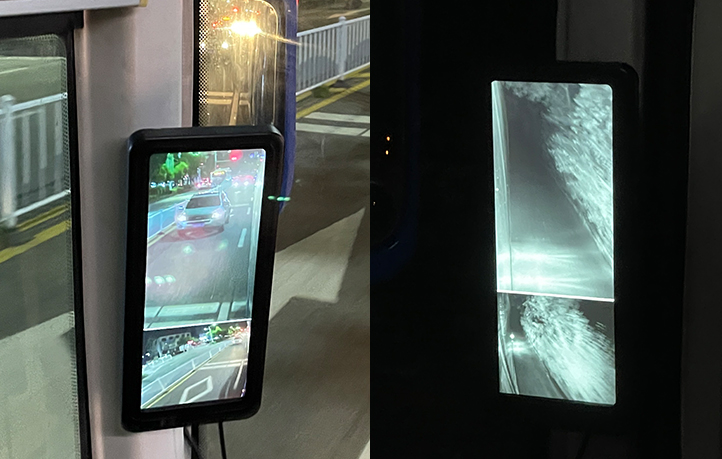

06 Low-Light Visibility

Preserves image details and reduces noise to deliver clear images in low-light conditions, providing better visibility for nighttime driving.

Upgrade Features

The upgraded features build on the core E-Side Mirror functions with additional features for improved visibility, driving assistance and system integration. It offers greater flexibility and functionality for different driving scenarios.

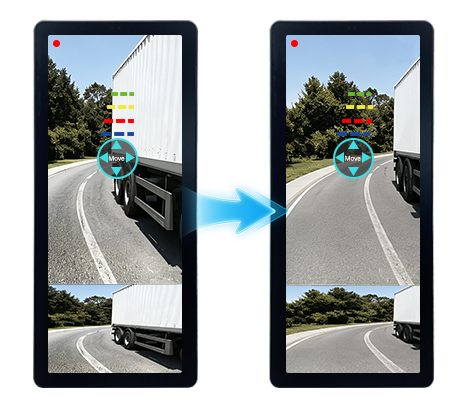

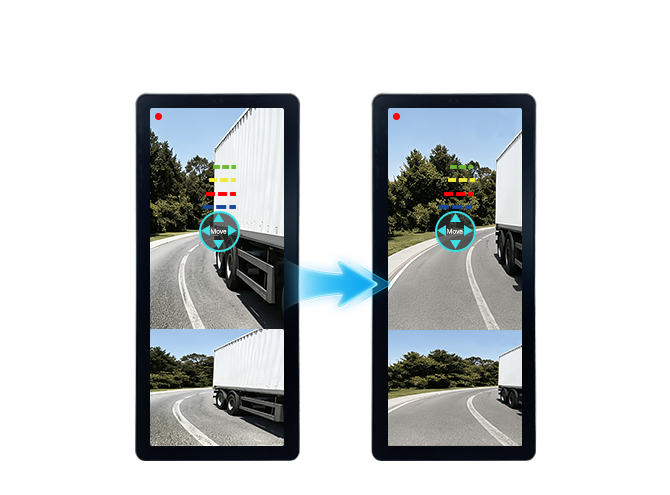

View Panning

Allows drivers to remotely adjust the camera viewing angle when turning, helping improve visibility around the vehicle and reduce blind spots.

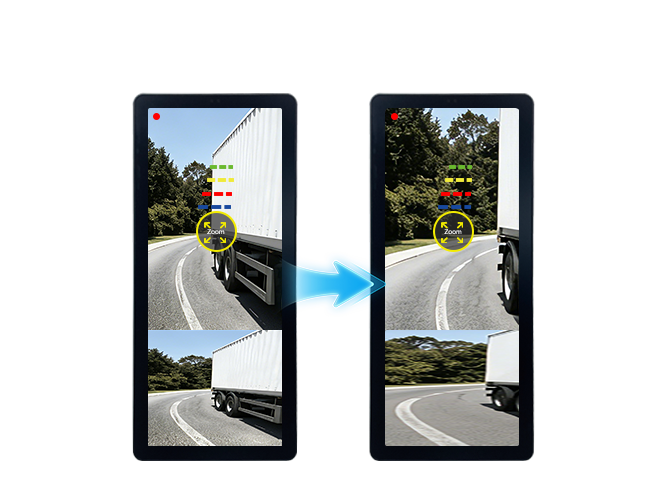

Adjustable Zoom

Provides adjustable image magnification, allowing drivers to zoom in on specific areas for a closer view when needed.

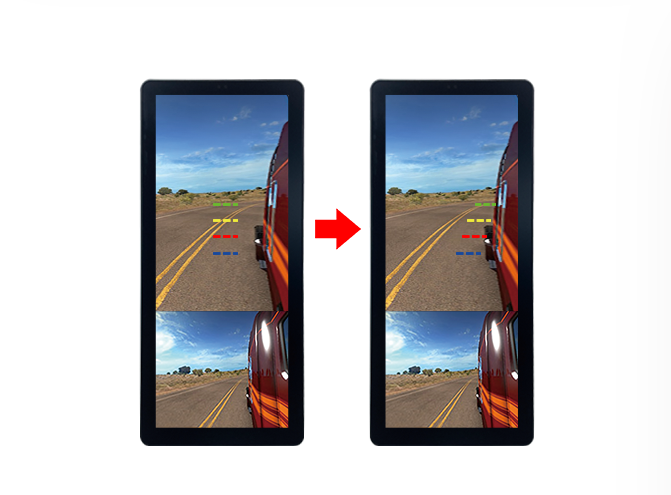

Distance Guide Lines

Displays reference lines on the screen to help drivers estimate the distance and position of surrounding vehicles and objects.

Video Recording & Storage

Using the button controller, the driver can easily adjust the field of vision, zoom in or out on the image.

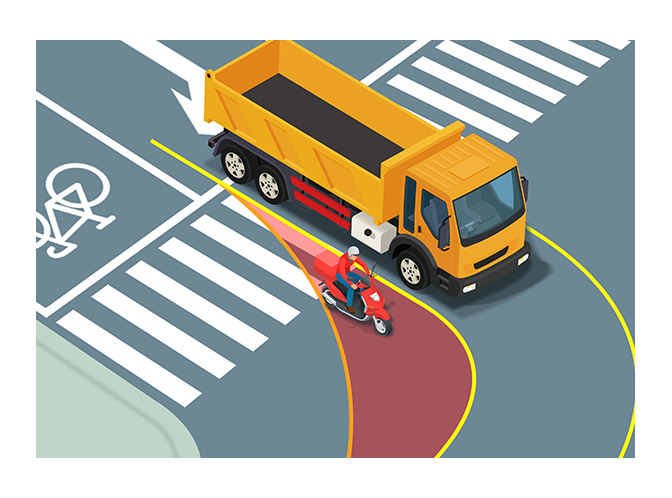

Blind Spot Detection

Detects vehicles and other objects in blind spot areas and provides timely warnings to help drivers make safer lane changes.

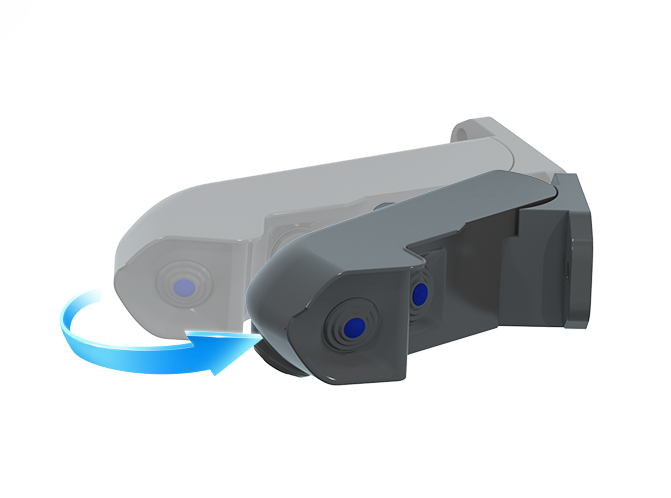

Folding Camera Bracket

Allows the camera to fold inward to reduce the risk of accidental impact, making it suitable for heavy-duty vehicles and demanding operating environments.
