7Inch Full Hd Monitor Direct Vision Standard DVS PSS London 2024 Compliance Blind Spot Camera Kit For Hgvs Truck

What is the Direct Vision Standard?

The DVS is a rating scale that aims to reduce the number of fatal collisions involving HGVs and vulnerable road users, where lack of vision is a contributing factor. It is designed to objectively measure a driver’s direct view through the windows of an HGV cab, and to define the level of risk to road users near the vehicle. This is expressed as a star rating from zero (poor) to five stars (good).

**Note: The above information from Transport For London

>> MCY welcomes all OEM/ODM projects. Any inquiry, please send an email to us.


Product Detail

Product Tags

DVS_01

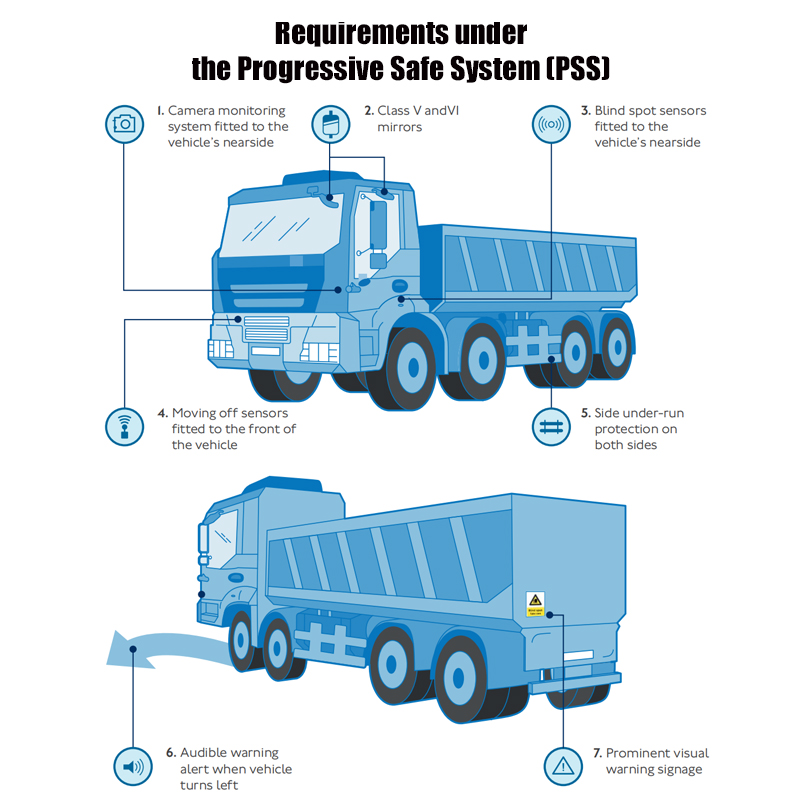

What is the Progressive Safe System?

From October 28th, 2024, all zero to two-star DVS rated HGVs weighing over 12 tonnes operating in London will be required to install a Progressive Safe System (PSS) before applying for a DVS Safety Permit.

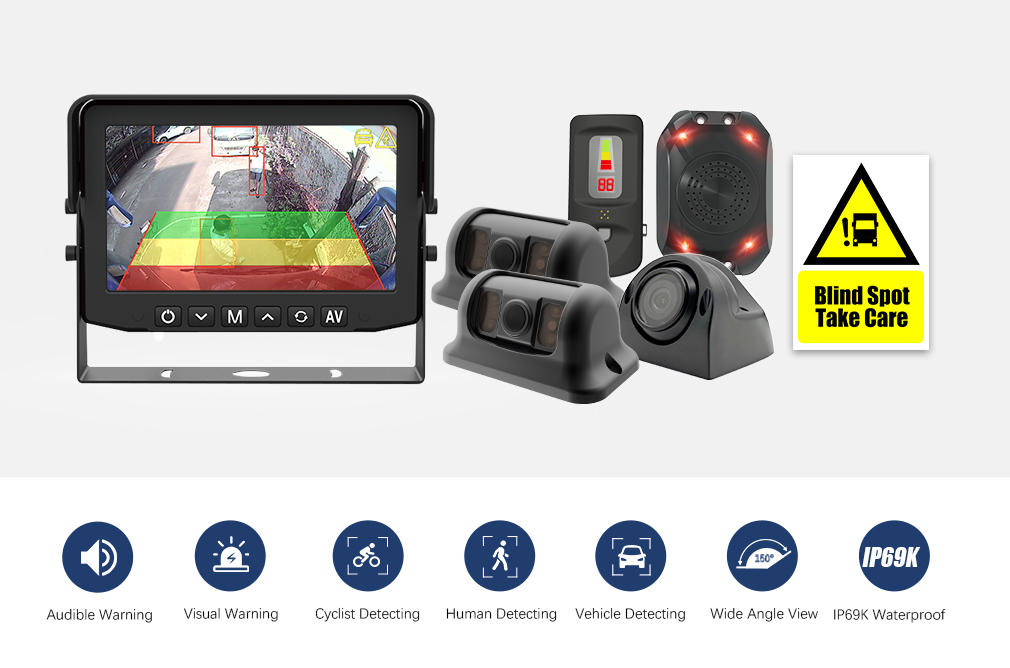

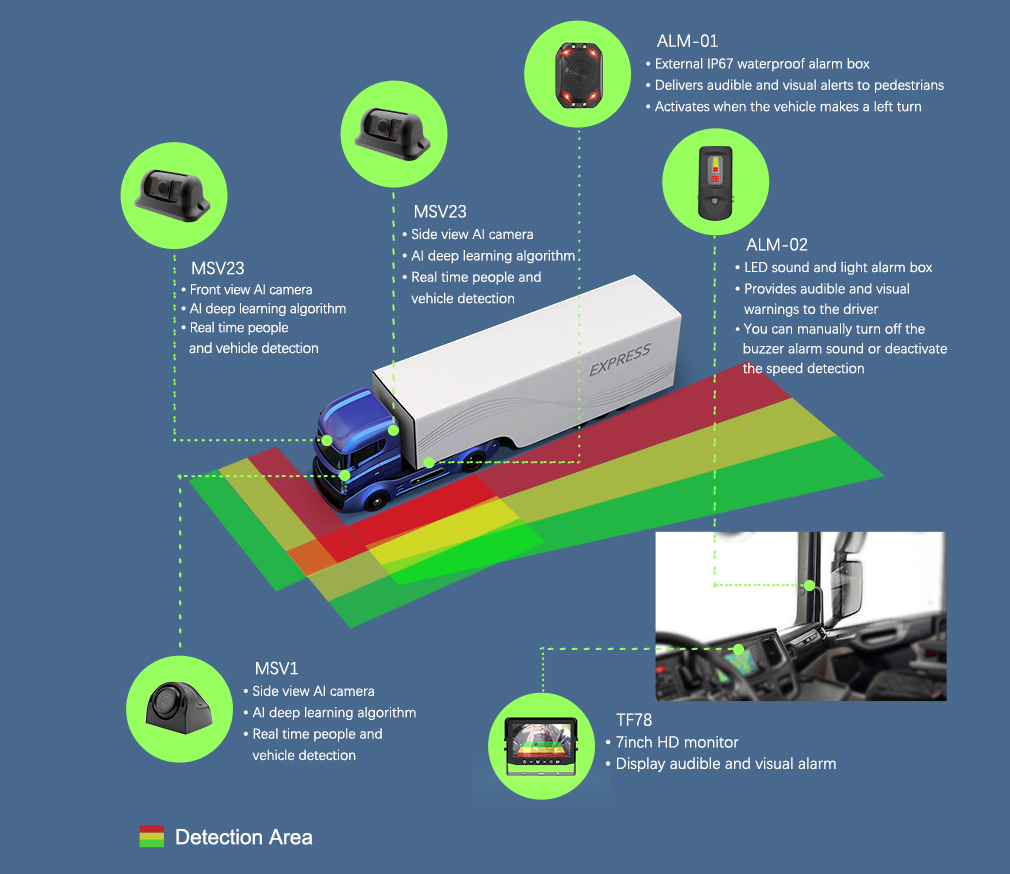

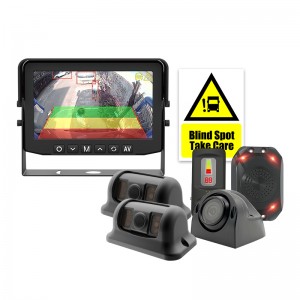

The MCY DVS Progressive Safe System includes:

● AI Camera Moving Off Information System (MOIS)
● AI Camera Blind Spot Information System (BSIS)
●7inch HD Monitor with visual and audiblealerts
● Visual and audio alarm for left turns
● Warning signage

DVS_02

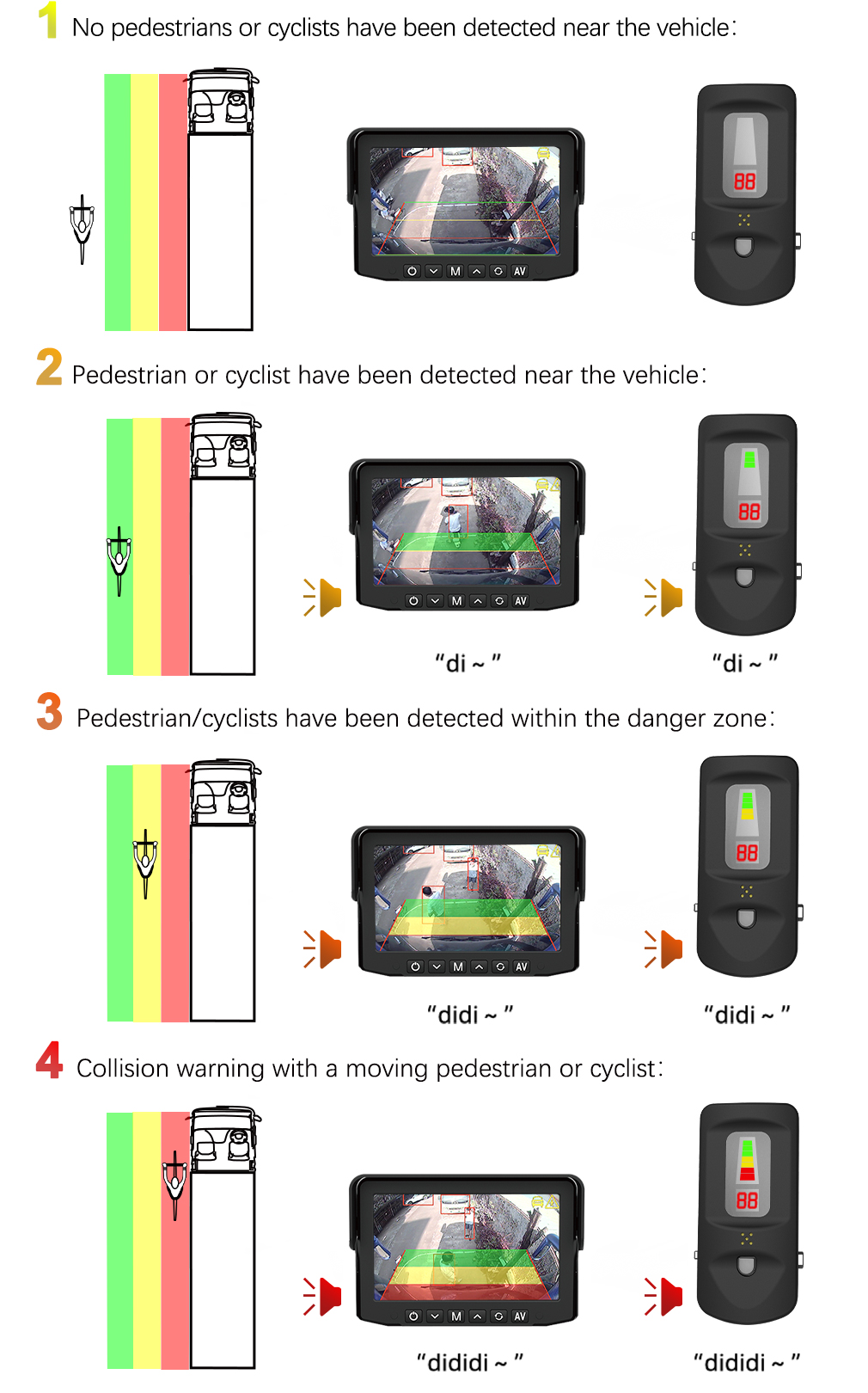

Alarm Display

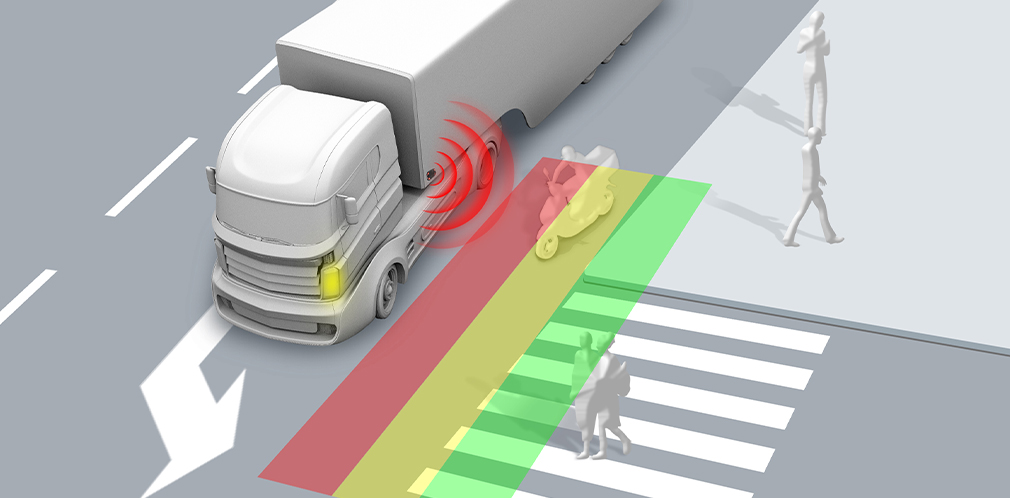

When pedestrians or non-motorized vehicles are in the green area of the left AI blind spot, the LED of the alarm box lights up in green. In the yellow area, the LED shows yellow, an in the red area, the LED indicates red.If the buzzer is selected, it will produce a "di" sound (in the green area), "didi" sound (in the yellow area), or "dididi" sound (in the red area). Sound alarms will occur simultaneously with the LED display.

DVS_03

Alarm Display of External Voice Alarm Box

When pedestrians or vehicles are detected in the blind spot, a sound warning will be played to alert pedestrians or vehicles, and the red light will flash. Users can choose to activate this function only when the left turn signal is turned on.

DVS_04
DVS_05
