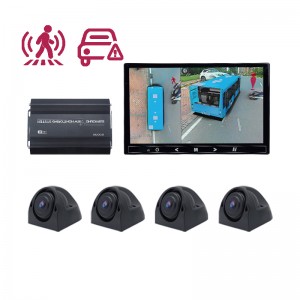

3D Bird View AI Detection Camera For Bus Truck

Model: M360-13AM-T5

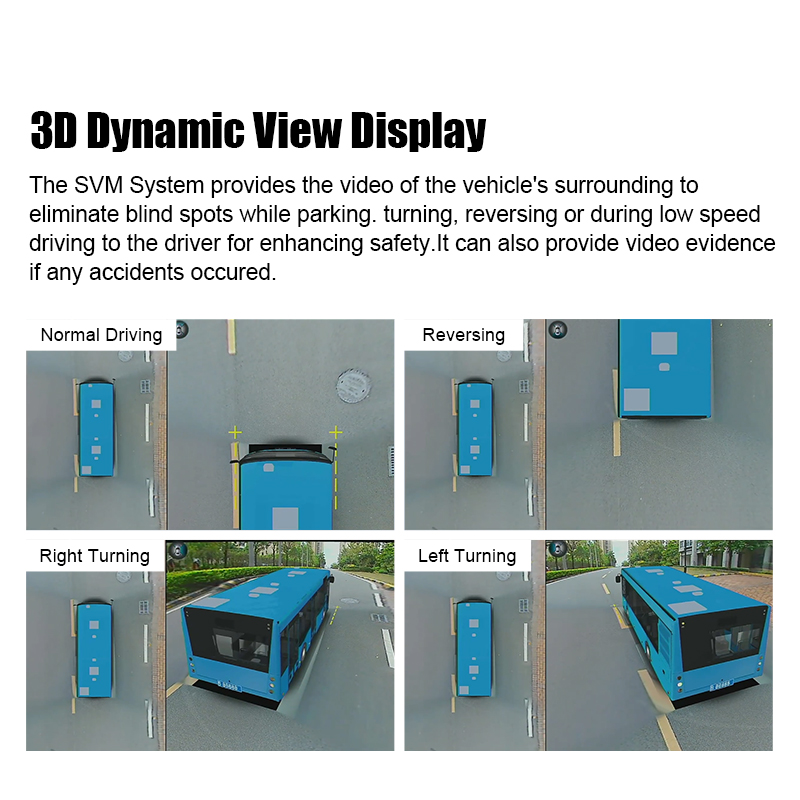

The SVM System provides the video of the vehicle’s surrounding to eliminate blind spots while parking. turning, reversing or during low speed driving to the driver for enhancing safety.It can also provide video evidence if any accidents occured.

>> MCY welcomes all OEM/ODM projects. Any inquiry, please send an email to us.

  • AI algorithms: Pedestrian & vehicle blind spot detection
  • Display Mode: 2D/3D
  • Resolution: 720P/1080P
  • TV System: PAL/NTSC
  • Operating voltage: 9-36V
  • Operating temperature: -30°C-70°C
  • Waterproof: IP67
  • Product Detail

    Product Tags

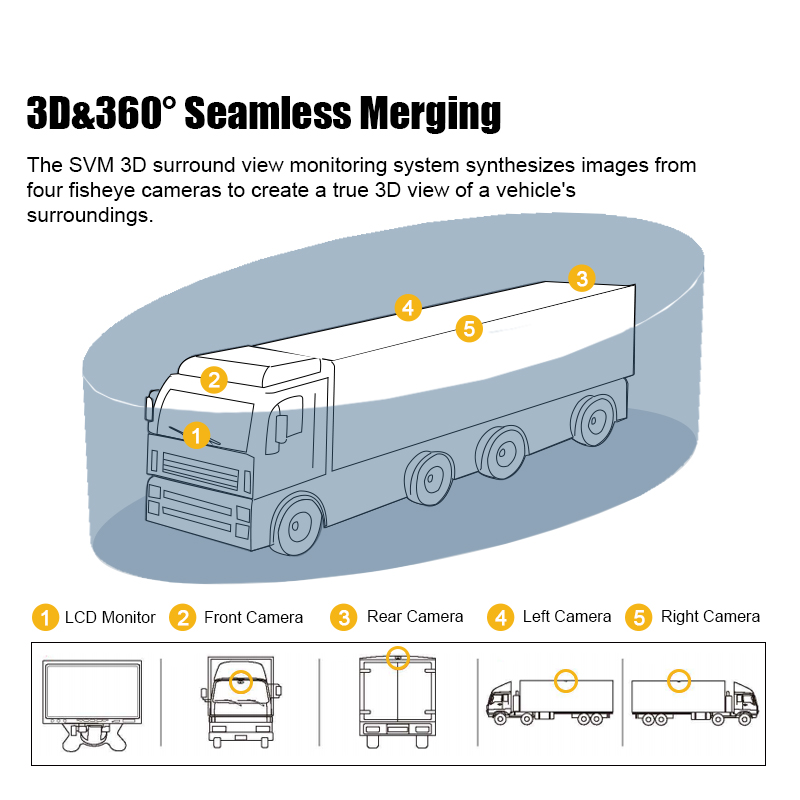

    The 360 degree around view camera system, built in AI algorithms with four ultra-wide-angle fish-eye cameras installs at the front, left/right and rear of the vehicle. These cameras simultaneously capture images from all around the vehicle. Using image synthesis, distortion correction, original image overlay, and merging techniques, a seamless 360 degree view of the vehicle’s surroundings is created. This panoramic view is then transmitted in real-time to the central display screen, providing the driver with a comprehensive view of the area around the vehicle. This innovative system helps eliminate blind spots on the ground, allowing the driver to easily and clearly identify any obstacles in the vicinity of the vehicle. It greatly assists in navigating complex road surfaces and parking in tight spaces.

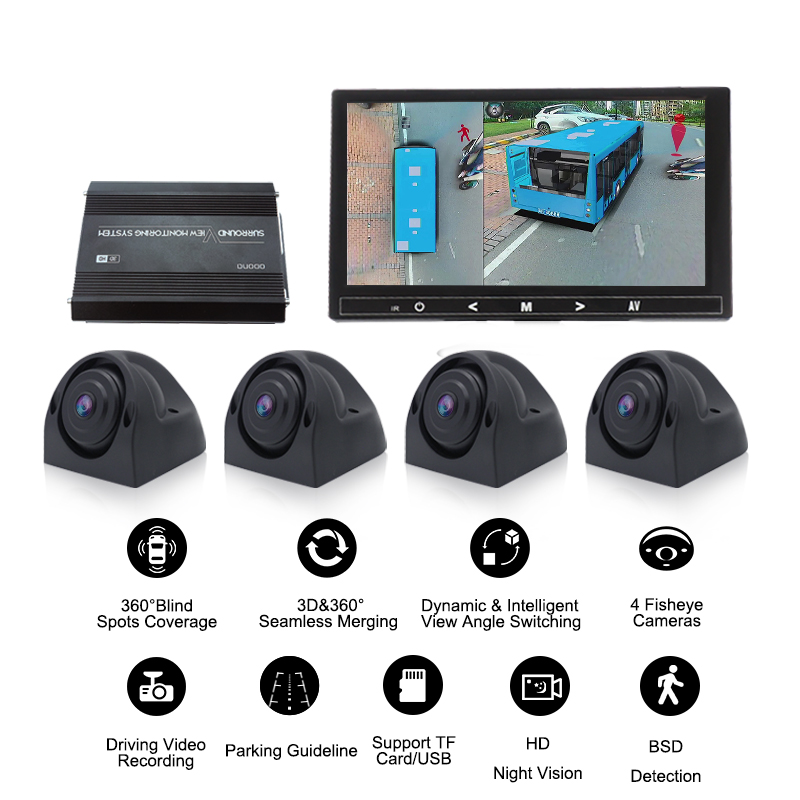

    ● 4 high resolution 180-degree fish-eye cameras
    ● Exclusive fish-eye distortion correction
    ● Seamless 3D & 360 degree video merging
    ● Dynamic & intelligent view angle switching
    ● Flexible omni-directional monitoring
    ● 360 degree blind spots coverage
    ● Guided camera calibration
    ● Driving video recording
    ● G-sensor triggered recording

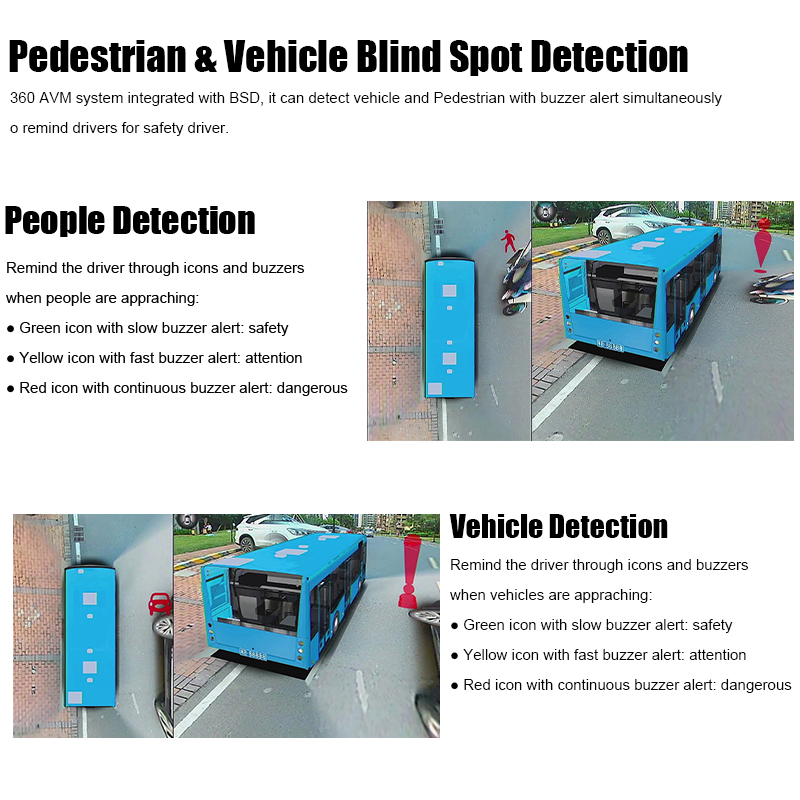

    ● Pedestrian & vehicle blind spot detection, AI intelligent system
