1080P AHD Security Camera Inside Car Camera Inside Car Taxi Camera System
Application
Suitable for many scenarios, such as indoor/outdoor security systems, vehicle and ship surveillance etc.
Public Transportation - Buses, trains, and other forms of public transportation can benefit from the installation of 1080P AHD security in-car cameras to monitor passenger behavior and prevent criminal activity.
Taxi and Ride-Sharing Services - Taxis and ride-sharing services can use 1080P AHD security in-car cameras to ensure the safety of both drivers and passengers. These cameras can help to deter criminal activity and provide evidence in case of incidents.
Delivery and Logistics - Delivery and logistics companies can use 1080P AHD security in-car cameras to monitor their drivers and ensure that they are following proper safety protocols. This can help to prevent accidents and improve overall efficiency.
Product Details
This versatile high resolution camera solution is suitable for both forward-and driver-facing applications, providing a 136 degrees wide angle view and supporting WDR for high- dynamic-range imaging. With automatic white balance Color Image, is an ideal for different using environments.
At the same time, you can remove blind spots for the driver by combining the devices with an in-vehicle monitor, mobile MDVR, side & rear cameras. With the multi-camera solutions, you can protect your drivers from bogus or exaggerated claims, thefts and allegations of driving offence for all types of transport operations.

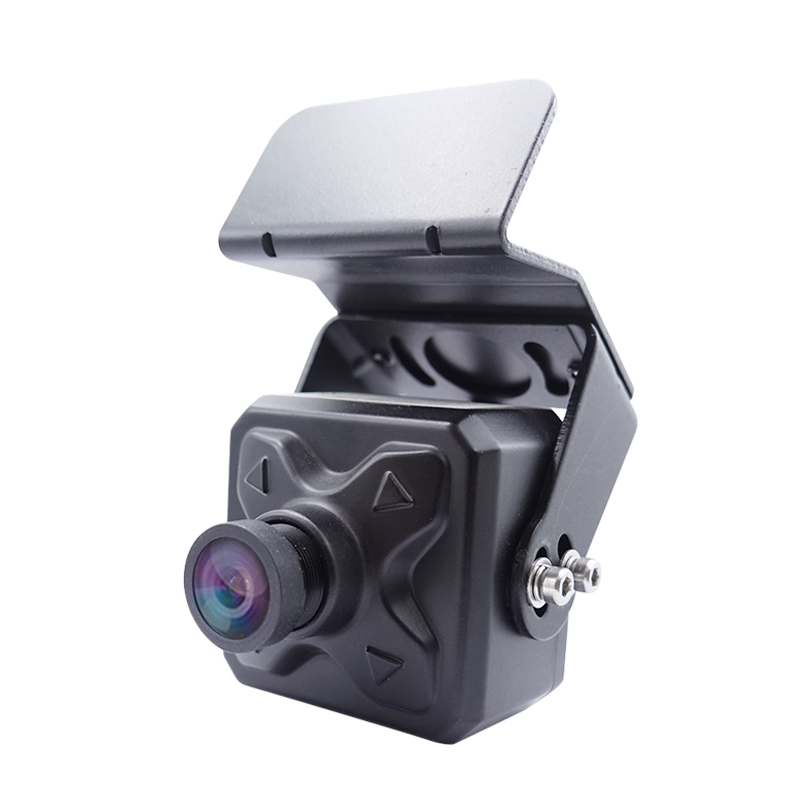

Product Display
Product Features
Image sensor: Industrial grade stable SONY sensor camera
Camera Dimensions( L x W x D): 66 x 51 x 50 cm
Resolution: 1080P (1920 x 1080)
Sensitivity: 0.1 Lux
Lens: 2.1mm
Format: NTSC / PAL
Operating Voltage: DC 12V
Electric Auto Iris：Yes
Horizontal Field of View: 136 degrees
Vertical Field of View: 72 degrees
Case material: Metal Case
Audio function: Yes
Cable connector: 4pin aviation connector
Remarks: Customized connector and lens available.
Product Parameter
|
Model |
MT5C-20EM-21-U |
|
Image Sensor |
1/2.8” IMX 307 |
|
TV System |
PAL/NTSC (optional) |
|
Picture Elements |
1920 (H) x 1080 (V) |
|
Sensitivity |
0.01 Lux/F1.2 |
|
Scanning System |
Progressive scan RGB CMOS |
|
Synchronization |
Internal |
|
Auto Gain Control (AGC) |
Auto |
|
Electronic Shutter |
Auto |
|
BLC |
Auto |
|
Infrared Spectrum |
N/A |
|
Infrared LED |
N/A |
|
Video Output |
1 Vp-p, 75Ω, AHD |
|
Audio Output |
Available |
|
Mirror |
Optional |
|
Noise Reduction |
3D |
|
Lens |
f2.1mm Megapixel |
|
Power Supply |
12V DC±10% |
|
Power Consumption |
130mA (Max) |
|
Dimensions |
66 (L) x 51(W) x 50 (H) mm |
|
Net Weight |
108g |
|
Weatherproof/Water Proof |
N/A |
|
Operating Temperature |
-30° C ~ +70 ° C |
