1 CH 7” LCD Monitor FHD 1080P 2.4G Wireless Rearview Security Camera Bus Truck Camera System Wireless
Application
Application Areas
Can cut carbon steel, stainless steel, copper, aluminum and other pipes and profiles, such as: the tube, pipe, oval pipe, rectangular pipe, H-beam, I-beam, angle, channel, etc. The device is widely used in various kind of pipes profile processing field, shipbuilding industry, network structure, steel, marine engineering, oil pipelines and other industries.
Product Details

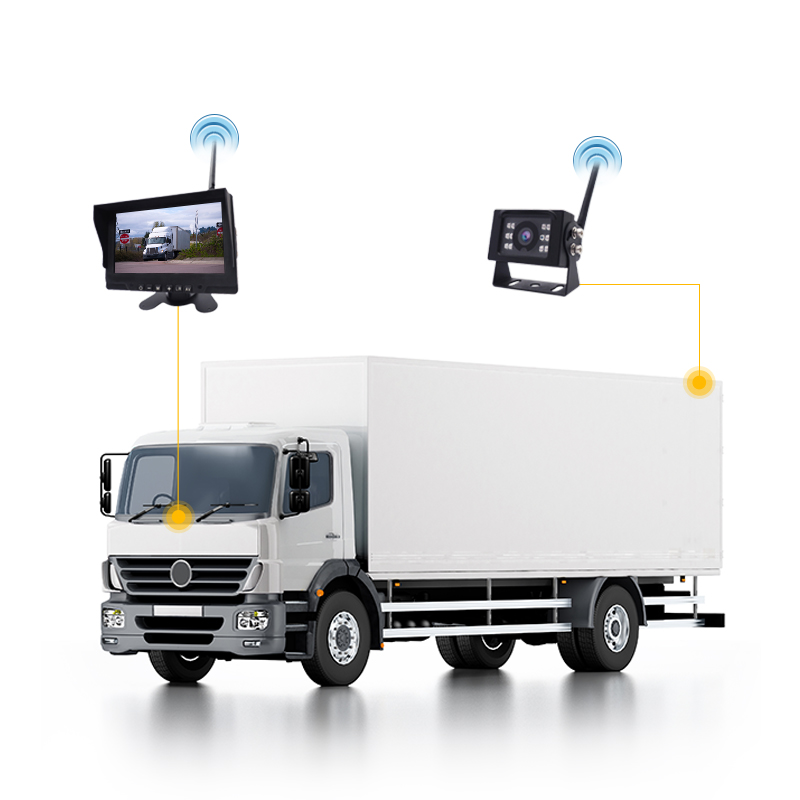

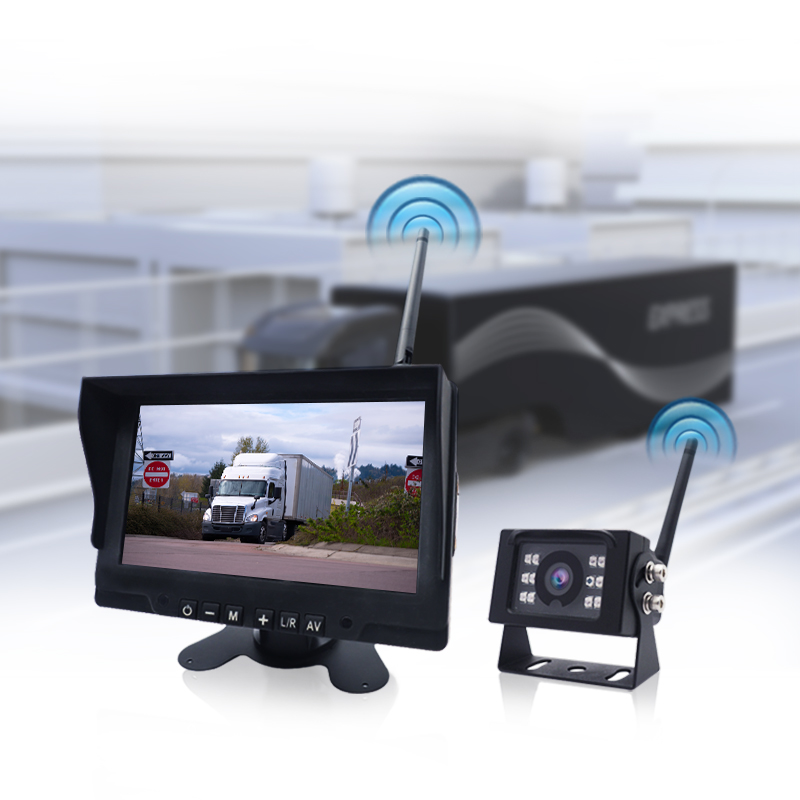

MCY 720P high definition wireless transmission systems, featuring in supporting 1 channel input, wide angle vision view, auto backlight compensation, IR night vision, 128GB SD card storage, IP67 waterproof and dustproof and etc., is easy to install and operate to various kinds of agriculture & construction vehicles, such as crane, excavators, bulldozer, tractors, and etc.
Strong Anti-interference
The wireless working range up to 300 meters in open area, no-interruption signal.Easy installation, no need to install long video cables from the monitor to the camera.
Product Display
Product Parameter
|
Model |
TF72-02AHD-T |
|
Screen Type |
TFT-LCD |
|
Screen size |
7 inch (16 : 9) IPS |
|
Number of Pixels |
1024(H) × 600(V) |
|
Screen backlight |
LED |
|
Brightness |
400cd/m2 |
|
Viewing angle |
85/85/85/85 |
|
Power supply |
DC12V -36V |
|
Power Consumption |
MAX 250mA @12V |
|
Operating Frequency |
2.4GHz~2.4385GHz |
|
Video Cooding |
H.264 |
|
Modulation Type |
FSK/GFSK |
|
Spread Spectrum |
FHSS |
|
RX Sensitivity |
-89dBm |
|
Delay |
≤200ms |
|
Range |
Max 300m |
|
System |
PAL/NTSC/AUTO |
|
Language Menus |
English |
|
Image rotaion |
upper/lower/left/right |
|
Operatiom Temprature |
- 2 0 ~ 7 0 ℃ |
|
Storage temperature |
- 30 ~ 80 ℃ |
|

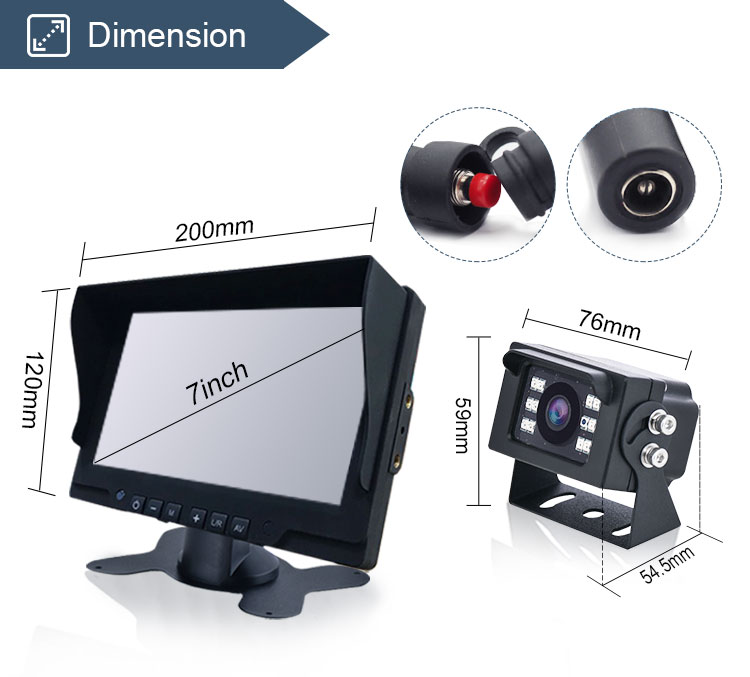

Dimensions |
(L)200*120(W)*(T)65mm |
High Definition Wireless Camera
|
Image sensor |
1/2.7'' |
|
Resolution |
720P, 1280*960 |
|
Frame Rate |
25fps/30fps |
|
Video Format |
H.264 |
|
Output Power |
17dBm |
|
Transmitting distance |
Max 300m |
|
Delay |
≤200ms |
|
Sensitivity |
0 Lux (IR LED On) |
|
Lens |
2.5mm(Optional) |
|
S/N Ratio |
More than 44dB (AGC Off) |
|
White Balance |
AUTO |
|
BLC |
AUTO |
|
Infrared LED |
11 LEDS |
|
Power supply |
DC12V -36V |
|
Power Consumption |
MAX 300mA@12V |
|

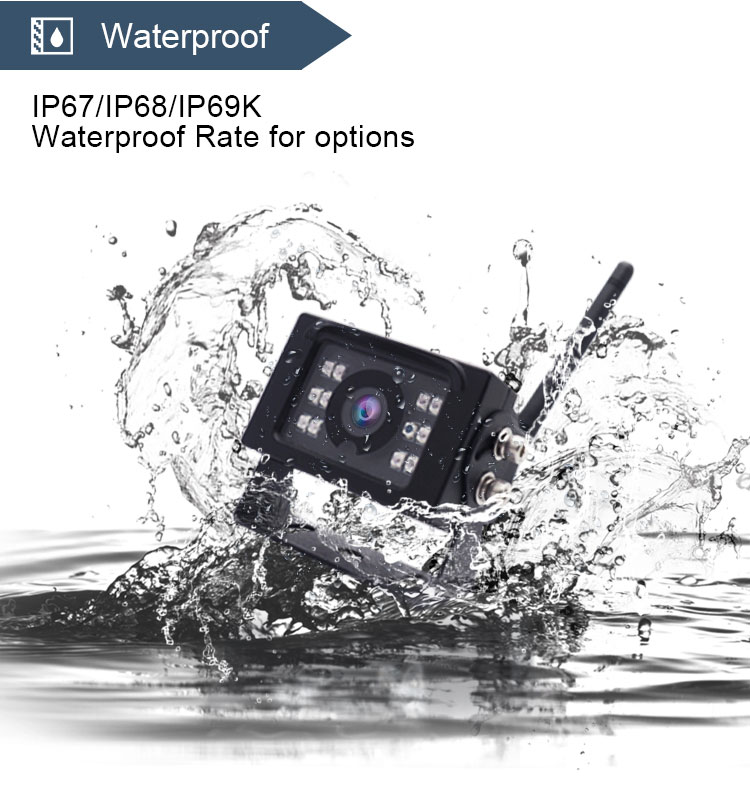

Water Proof |
IP68 |
|
Operatiom Temprature |
- 2 0 ~ 7 0 ℃ |
|
Storage temperature |
- 30 ~ 80 ℃ |
|
Dimensions |
L69 x W76 x H78 mm |
