Car 360 panoramic blind area monitoring system

A car 360 panoramic blind area monitoring system, also known as a 360-degree camera system or surround-view system, is a technology used in vehicles to provide drivers with a comprehensive view of their surroundings. It utilizes multiple cameras strategically placed around the vehicle to capture images from all angles, which are then processed and stitched together to create a seamless 360-degree view.

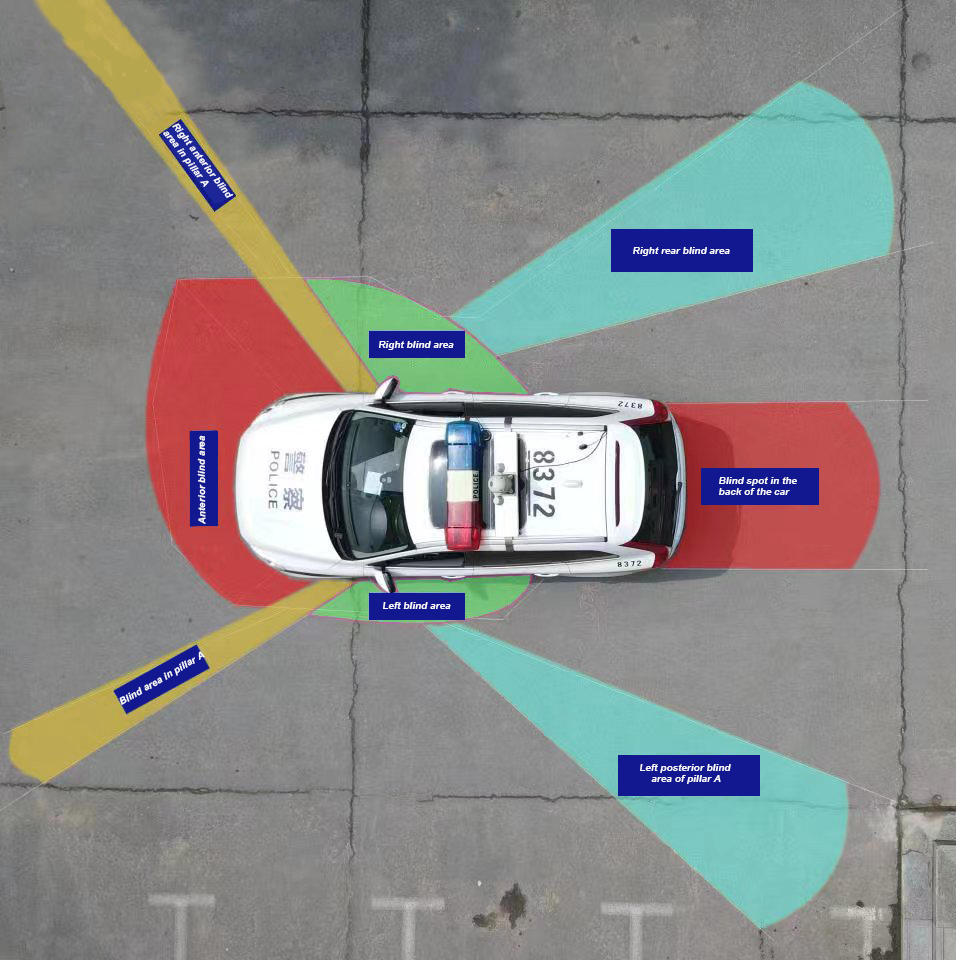

The primary purpose of a 360 panoramic blind area monitoring system is to enhance safety by eliminating blind spots and helping drivers maneuver their vehicles more effectively. It allows the driver to see areas that would typically be difficult or impossible to observe using just the side and rearview mirrors. By providing a real-time view of the vehicle’s entire perimeter, the system assists in parking, navigating tight spaces, and avoiding obstacles or pedestrians.

Here’s how a typical 360 panoramic blind area monitoring system works:

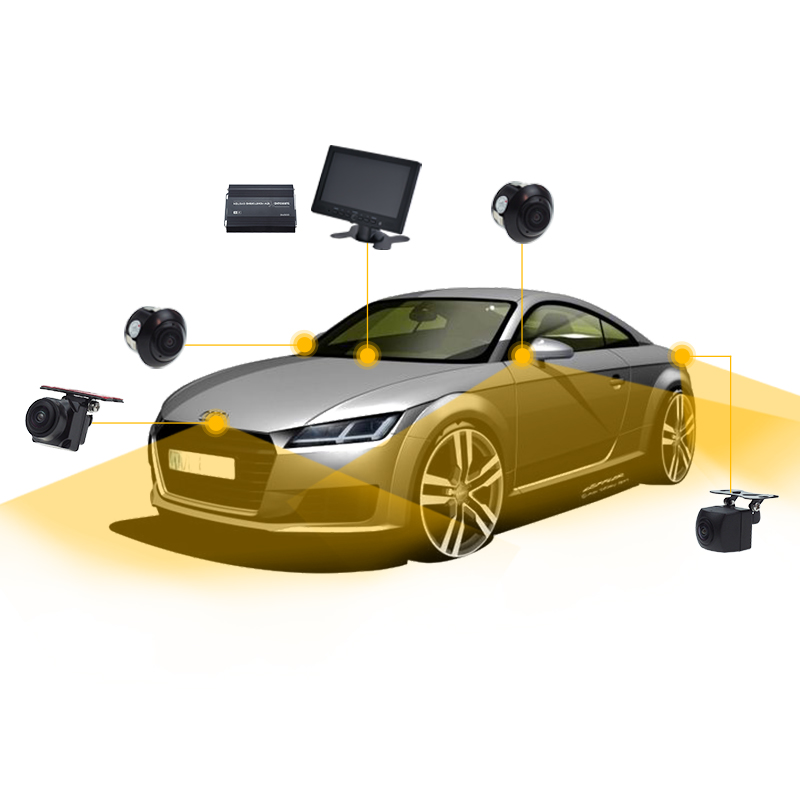

1. Camera Placement: Several wide-angle cameras are mounted on different positions around the vehicle, such as the front grille, side mirrors, and rear bumper. The number of cameras can vary depending on the specific system.
2. Image Capture: The cameras capture video feeds or images simultaneously, covering a complete 360-degree view around the car.
3. Image Processing: The captured images or video feeds are processed by an electronic control unit (ECU) or a dedicated image processing module. The ECU stitches the individual camera inputs together to create a composite image.
4. Display: The composite image is then displayed on the vehicle’s infotainment screen or a dedicated display unit, providing the driver with a bird’s-eye view of the vehicle and its surroundings.
5. Alerts and Assistance: Some systems offer additional features such as object detection and proximity alerts. These systems can detect and warn the driver about potential obstacles or hazards in their blind spots, further enhancing safety.

The 360 panoramic blind area monitoring system is a valuable tool for parking in tight spaces, maneuvering in crowded areas, and increasing situational awareness for drivers. It complements traditional mirrors and rearview cameras by providing a more comprehensive view, helping to prevent accidents and improve overall driving safety.
