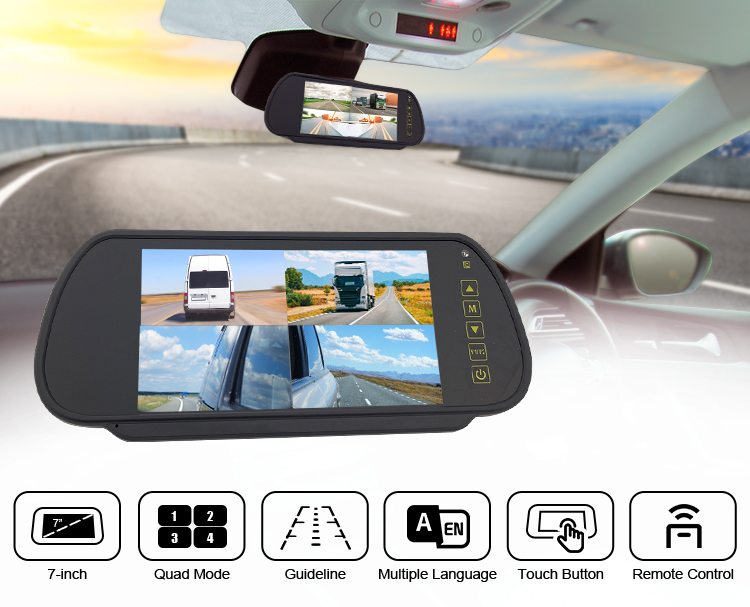

4 Channel Quad Image 7” Full Screen Car Mirror Camera Lcd Monitor In Rear View Mirror

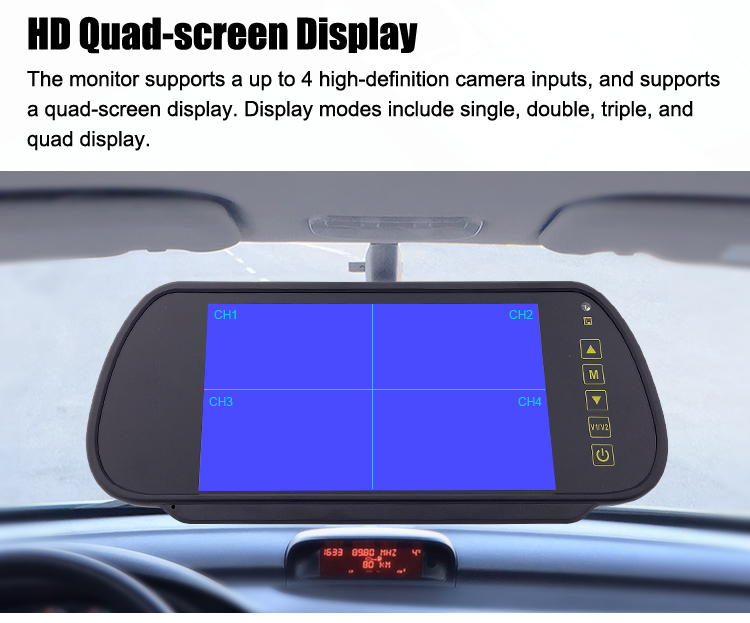

HD Quad-screen Display

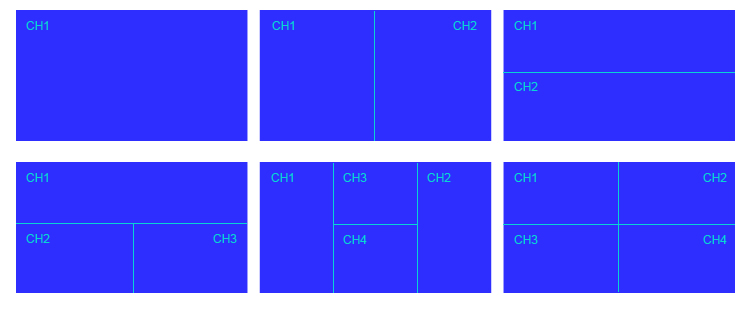

The monitor supports a up to 4 high-definition camera inputs, and supports a quad-screen display. Display modes include single, double, triple, and quad display.


  • Model: TF715-04AHDQ
  • TFT-LCD: 7 inch （16 : 9） IPS
  • Effective Pixels: 1024(RGB)*600(pixel)
  • Brightness: 550cd/m2
  • Contrast: 800 (Typ.)
  • Viewing angle: 85/85/85/85(L/R/U/D)
  • Power Consumption: MAX 7W
  • Video: CH1/CH2 /CH3/CH4 1080P/720P/CVBS
  • System: PAL/NTSC
  • Language Menus: Chinese/English/Russian/Japanese/Korean
  • Image rotaion: upper/lower/left/right
  • Operatiom Temprature: - 2 0 ～ 7 0 ℃

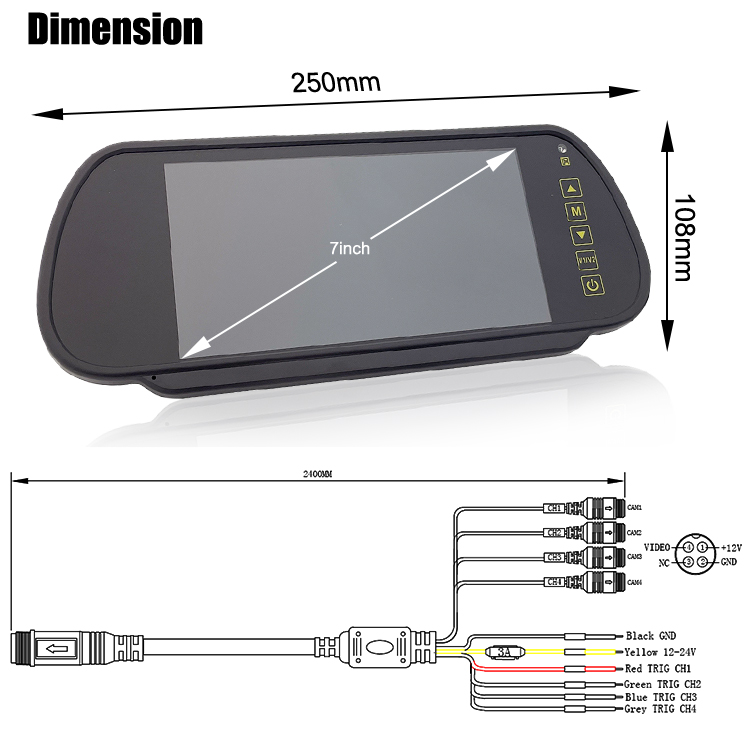

  • Dimension: 250(L)*108(W)*(T)22mm
  • Power: DC12V-24V
